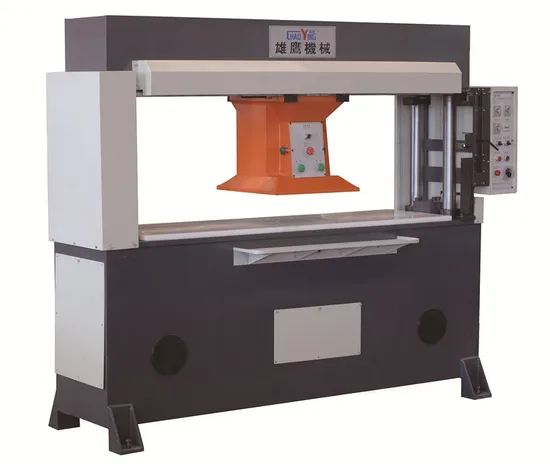

Precision Four-Column Hydraulic Traveling Head Cutting Machine with Shoes

Product Description

Precision four-column hydraulic traveling head cutting machine with shoes
USE AND CHARACTER:
The machine is suitable for cutting single layer or multiple layers of leather, rubber, plastic, paperboard, fabric, chemical fiber, nonwoven cloth and etc. By forming cutter.
1. The cutting head can be moved to the left and right, providing wide operating visual field. It is suitable for cutting multi-layer wide materials.
2. The cutting head can be freely moved to the left and right with convenient operation, saving the operation time.
3. Operating with both hands makes high safety
4. The automatic feeding device can be additionally installed to enhance work efficiency.
TECHNICAL SPECIFICATION:

Maximum cutting force	35Tons
Travel adjustment range	0-120mm
Range between the working tables	30-150mm
Size of the upper pressing board	500*500mm
Size of lower worktable	1600*600mm
Motor power	3kW
Net weight	2400kgs
Dimension	2280*1200*1900mm
Drive	hydraulic
Hydraulic oil	46# or 68#
Motor information	3 phase 220V /380v/440v 50hz or 60hz
Machine color	Red& Blue or Red& Gray or customized
OEM	Welcome

Die cutting mold:
Related machine:
Machine working show
Delivery:
Attending fair
Client visit factory
The FAQS.
1) Are you the factory or trading company?
We are the direct factory
2) What is your MOQ of your Product?
Normally our MOQ is 1 set
3) Do you have any certification on your product?
We have CE & SGS approved for some of our product
4) What is your main market for the overseas?
We exported our machines all over the world including USA , Europen countries ,
Asia countries and African countries
5) What is the warranty of your product?
We have 1 years warranty

---
