Product Details
Product Description
Product Description
Product Description
System Feature:
1, high sensitive sensor with 0.4-5m range detection
2, each sensor corresponds to a point and display on screen
3, industrial design metal housing control box with waterproof, anti-shock, anti-interference
4, 7inch TFT LED monitor display clear rear vision and distance of the vehicle on screen
5, built in buzzer alarm or human voice alarm indicate step by step
6, waterproof, day&night vision camera provide clear picture
7, DC12-24V wide operation voltage for all vehicles
8, sensor with rubber or metal bracket optional
9, full set waterproof, anti-shock, anti-interference can work in harsh environment
10, Ideal for various vehicles for back side blind zone detection
Optional:
0.4-5m range detection optional
with beep, beep,,,, alarm control optional
with cam mic, beep alarm together optional
with different length video cable or sensor cable optional
| accessory | quantity | Product model | remark |

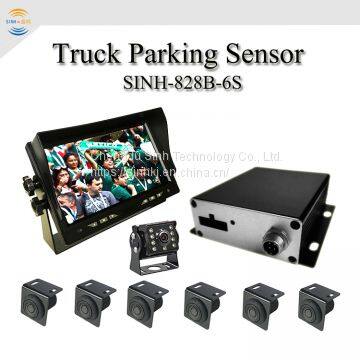

| Radar host | 1 | SINH-828B-6s |
|
| probe | 6-8 | 32T | Maximum support 4-way 8 Sensor |
| Video link | 2 |
| According to vehicle condition matching |
| camera | 1 |
| Maximum support 4-way Camera |
| display screen | 1 |
|
|
| power line | 1 | 1m |
|
| product manual | 1 | SINH parking sensor monitoring system |
|
| certificate | 1 |
|
|
Control Box spec
Rated voltage: 24V
Rated Power: <20W
detection range: 0.4 ~ 5m
Display Resolution: 0.1m
Detection angle: single angle 60 ° ± 15 °
Supply 12V power to monitor, camera
Operating Temperature: -40 ° C ~ +80 ° C
Waterproof: IP66
Shockproof: 10G
Sensor detection distance:
Concrete wall: 16.4ft(5m)
Vehicle: 16.4ft(5m)
Person: 11.48ft(3.5m)
Post(75mm diameter): 9.18-9.84ft(2.8-3.0m)
Single Sensor detection angle: 80 ° ± 15 ° U/D/L/R
Waterproof rate: IP67
Sensor installation height: .80CM--130M or higher
Sensor installation space between two sensors: 0.2M--0.6M
vehicle width ≥3M can install 6 sensors
Sensor with metal bracket/rubber bracket optional
Monitor Spec
7" digital panel MONITOR
Ratio: 16:9 /4:3
Pixel: 800*480
System: PAL/NTSC auto switch
Video input: 2 way
Audio input: 1 way optional
Backup: V2 auto reverse
View angle: U/D/L/R
Adjustable image brightness/color/contrast
With remote control and OSD menu
Power supply: DC12V
Current: 0.7A
Luminance: 300-400/m2
Operating temp.:-10°C ~ 60°C
Device size:228x154x27 mm(W/H/D)
weight: 615g
Camera Spec
Image Sensors: 1/3"SONY CCD
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels: 752x582 pixels / 768×494 pixels
Resolution:800TV lines
Minimum Illumination:1.0Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
Pin Lens:f=2.8mm / F = 2.0
Lens Angle:90/120°
Power Supply:DC12V
Current Consumption:≤300mA
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Install the case
>>
