Basic Info.
Model NO.
F3000 6x4 10cbm
Certification
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Transmission Type
Automatic
Engine Model
Wp10.340e22, 340HP
Clutch
φ430 Diaphragm Spring
Gearbox
Fast Rtd-11509c, Manual
Front Axle
9.5t Man 9500kg
Rear Axle
13t Man 2*13000kg
Steering
Zf Technology Left-Hand Drive(LHD)
Transport Package
Nude Packing
Specification
9500*2500*3950mm
Production Capacity
5000 Pieces/Year
Product Description

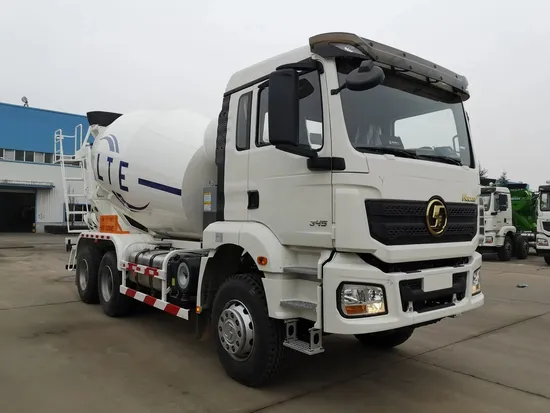

Hot Selling 6x4 340HP SHACMAN F3000 Concrete Mixer Truck Product Description*Cum--mins core power upgrade, FAST twin center shaft structure gearbox, HanDe high ratio single stage axle, vehicle power increased by 20%, Cum--mins ISM engine.
*High performance: Improved muffler, improved ground clearance, new exhaust system layout, lowest center of gravity, new stabilizing technology.
*Grade chassis, reinforced driver cab, upgraded oil bath type air filter, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab turning shaft, off road racing quality cab damping spring.
*Mature power delivery system, increased overall efficiency, higher uptime, lower maintenance cost.Product Characteristics*Frame type structure, local strengthening design, for maximum safety;
*Industry leading torsional stiffness and bending stiffness; *Highly efficient cabin design; reducing drag and increasing air intake to the engine;
*Toughened laminated windshield glass, ensuring safe operation;
*Greater driver field of vision; allowing better driver awareness;
*Spacious interior and storage space, up to 620mm wide cushioned bed.Product Parameters
| F3000 6×4 MIXER TRUCK |
| Cab | MAN F3000 Cab Single bed Air conditioner |
| Dimension(Lx W xH)(mm) | 9500×2500×3950mm |
| Total mass(kg) | 25000kg |
| Kerb mass(kg) | 14000kg |
| Rated mass(kg) | 10870kg |
| Approach / departure angel | 20/19 |
| Front/rear suspension(mm) | 1525/2445 |
| Max. gradeability (%) | 25 |
| Engine brand | Wei-chai Engine |
| Engine model | WP10.340E22,340hp |
| Rated output power | 250kw |
| Rated speed(rpm) | 2200rpm |
| Emission Standard | E-II |
| Displacement(L) | 9.726L |
| Driving type | 6×4 |
| Axle number | 3 |
| Wheel base(mm) | 3775+1400mm |
| Clutch | φ430 diaphragm spring |
| Gearbox | FAST RTD-11509C,Manual |
| Front axle | 9.5T MAN 9500kg |
| Rear axle | 13T MAN 2×13000kg |
| Ratio | 5.92 |
| Steering | ZF technology left-hand drive(LHD) |
| Type | 12R22.5,10+1pc |
| Tank capacity(L) | 400L |
| Braking system | ABS |
| Max. speed (km/h) | 75km/h |
| Others:Front and lower protection, driving recorder, cruise control system, speed limit of 90km/h, reminder of unfastened safety belt, reflective vest |
| Color | optional |
| Tank volume(m³) | 10m³ |
| Pump,Motor,Reducer | PMP |
| Material of tanker | Q345 |
| Thickness | Thickness of canister wall:5mm,end socket:6mm |
