3200mm Escuadradora Mj6132taz Sliding Panel Saw Machine for Cutting

Product Description

MJ6132TAZ SlidingTable Panel Saw Machine with two years warranty

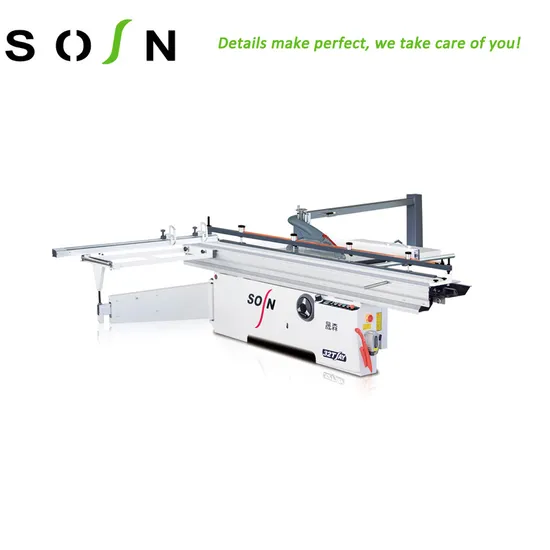

1). Machine picture.
2). Configuration:
-- 3200*410mm Altendorf sliding table
-- tilt 0-45 degree
-- electric up and down of main saw blade
-- digital display of main saw blade tilt degree
-- one set of saw blade.
-- wooden case package.
-- some easy broken parts( bearing/button/belt,etc).
-- common dust hood.
-- two years warranty.
3).Technical parameter:

Model( Electric up and down of main saw blade )	MJ6132TAZ
Sliding table size	3200*410mm
Gross cut capacity	3200mm
Width between saw blade&rip fence	1250mm
Saw blade diameter	300(250-350)mm
Height of cut (300mm)	70-80mm
main saw spindle Speed	4500/6000rpm
Main spindle diameter	30mm
Tilting saw blade	0-45-90°
Main motor Power	5.5kw
Scoring motor power	1.1kw
Scoring saw blade dia	120mm
scoring saw blade speed	8000rpm
Scoring saw diameter	20mm
Weight	850kgs
machine body Package size	2200*1150*1100mm
Sliding table Pack size	2950*480*320mm

4).Details description:

	Steel bar sliding table,3200*410mm, with inner lock, more rigidity and strength, smooth movement.
	Perfect inner structure, linear guide way to make sure the machine work precision, easy-operation. 5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells
	Big saw blade tilt degree is digital show, very convenient for operator, also with high precision. European quality button
	Thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions.

5).Package and delivery:
6). Our factory.
With rich professional exprience for woodworking machine, we sincerely welcome your visiting to our factory.
--Delivery:We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount.--Package:
After testing the sliding panel saw machine well, our workers will do cleaning work before package.
stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film.
we will do wooden package for you, one set sliding panel saw machine include two packages, one is for machine body, one is for sliding table.
8 sets/20ft, 24set/40HQ.
--Guarantee:The machine is guaranteed for 24 months.
--Technical support:Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.We provide English version manual and Operational video.Engineer available to service machinery overseas.--After sales services:Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help.
No worry for any installation or operation of this sliding panel saw machine, we are here to help you.
Heavy duty frame, Unique internal structure, top-brand spare parts, professional installation workers, in time after sale service, this machine surely can highly improve your working efficiency!
Please contact me now to start your working upgrading!

---
