Minwen 40FT/ 20FT ISO/Lr Approved CNG Storage Cylinders Transportation Tube Skid Containers

Product Description

ISO Certification 20FT/ 40FT 250bar CNG Semi Trailer Bundle Tube Skid Container
Compressed Natural Gas (CNG) Tube Skid is used to transporting large volumes of natural gas to areas where are in lack of gas piping, CNG Tube Skid can supply CNG for NGV station ,industry factory , power plant or family use.
Application
For CNG, Hydrogen, Nitrogen, Helium transport and temporary storage
Characteristics
1. Frame structure integrated constructed, chassis diamantlable.
2. Gas cylinders can be assembled freely and can be assembled as per customer's requirement.
3. 20ft and 40ft container is convenient for marine shipping, road transport and enter limited space more freely.
Standards
Cylinder according to International Standard: ISO 11120, DOT
Container Frame standard: ISO 1496/ISO668
Container Corner fitting Standard: ISO 1161
Inspection body
Bureau Veritas (BV)
Product Parameters

S/N	Model	Working Pressure (bar)	Total water volume (m3)	Total gas volume (Nm3)	Container tare quality (kg)	Medium quality (kg, calculate by CNG)	Filling medium
1	GSJ08-2320 (40FT)	250	18.56	5846	22400	4176	CNG or other compressed gas
2	GSJ09-2320 (40FT)	250	20.88	6577	25715	4698	CNG or other compressed gas
3	GSJ10-2320 (40FT)	250	23.2	7308	28150	5220	CNG or other compressed gas
4	GSJ11-2320 (40FT)	250	25.52	8038	30585	5742	CNG or other compressed gas
5	GSJ12-2320 (40FT)	250	27.84	8769	33020	6264	CNG or other compressed gas
6	GSJ08-2450 (40FT)	250	19.6	6174	24240	4410	CNG or other compressed gas
7	GSJ09-2450 (40FT)	250	22.05	6945	27020	4961	CNG or other compressed gas
8	GSJ10-2450 (40FT)	250	24.5	7717	29600	5512	CNG or other compressed gas
9	GSJ11-2450 (40FT)	250	26.95	8489	32180	6063	CNG or other compressed gas
10	GSJ12-2450 (40FT)	250	29.4	9261	34760	6615	CNG or other compressed gas
11	GSJ08-1050 (20FT)	250	8.4	2625	14068	1889	CNG or other compressed gas
12	GSJ12-1050 (20FT)	250	12.6	3969	19632	2835	CNG or other compressed gas

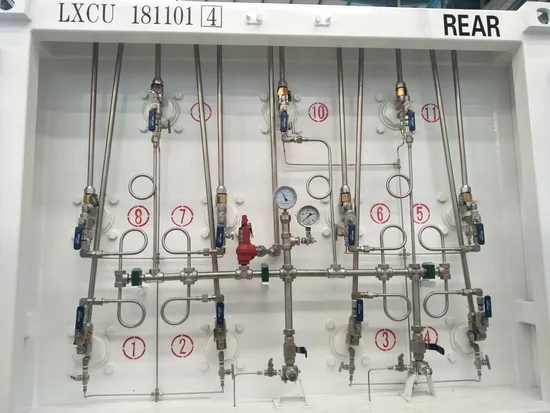

Detailed Photos


Customers
Minwen can provide a wide range of services that we take into account, so that customers can use them daily for the purposes required to perform their specific tasks and/or activities.
We exported our industrial gas equipment to customers all over the world. In the past few years, we cooperated with customers from Brazil, Ecuador, Colombia, Paraguay, Chile, Indonesia, UAE, Ukraine, Syria, Guinea, Russia, Sudan, Angola, etc. We always create the opportunities for win-win business cooperation with our international customers.


Certifications
With advanced technologies and strict quality management, our products have passed the major international third-party quality control certifications such as ASME, CE, and Famous classification society such like BV, TUV, Lloyds and etc.

Minwen Full Products

Minwen is an established company that has been providing one-stop service to clients all over the world.

We export below gas equipment with internationally proven quality and competitive prices.
- Cryogenic tank and dewar cylinders
- Lorry tanker and ISO tanks
- Cylinder filling pump and transfer pumps
- CNG and compressed H2 tube containers
- LNG/ CNG refueling stations
- Air separation plants
- PSA nitrogen/ oxygen plants
- Green Hydrogen generators
- Gas compressors
- Dry ice machines
- Ambient vaporizers


Company Profile
Guangzhou Minwen Cryogenic Equipment Co., Ltd. is an established company specializing in industrial gas equipment and cryogenic solutions. With stable economy development in China, Minwen constantly strengthens its supply chain capabilities and resource integration capabilities. We are always on the way of promoting the efficiency and competitiveness, to guarantee high-quality performance of our services.

FAQ
1. Which countries you can ship the equipment to?
We ship to worldwide, such as Russia, Paraguay, Brazil, Colombia, Indonesia, Middle East, Africa, etc.
2. May I have the best price from you?
Sure. We are always on the way of promoting our competitiveness on products price and service.
3. Is your equipment quality good?
Yes. With advanced technologies and strict quality management, our products have passed the major international third-party quality control certifications such as ASME, CE, and Famous classification society such like BV, TUV, Lloyds
4. Do you provide one-stop service so I can save my time and labor?
Yes. Minwen constantly strengthens its supply chain capabilities and resource integration capabilities. You will own a professional team in China by cooperating with Minwen.
5. Where is your company located?
Our Export Office is located in Guangzhou, with associated factories across China. This helps our international clients to integrate all the high quality resources together with Minwen.

---
