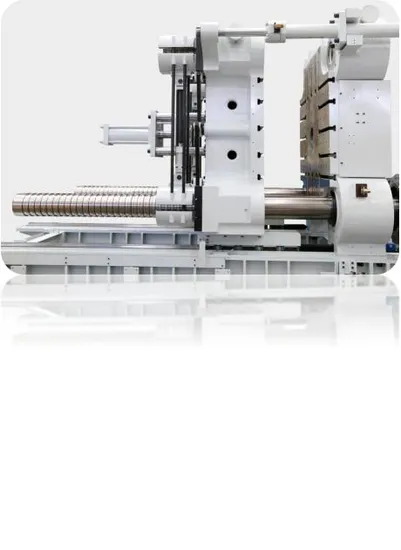

Potenza II 80 Ton Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.
We have over 10 production bases worldwide, most in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang.
There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customers service.
Key features
1.German gear pump with permanent magnet servo motor
2.Professional controller system
3.Study toggle clamp system with advanced FEA engineering design
4.Excellent kinetic motion characteristic
Use of application
Power Tool, Personal Care, Toys, Electrical Appliances, Body Parts, Steering Wheels, Small Packaging, Daily product
Technical Parameter List

	ITEM	UNIT	PT80
Shooting Part	Shot Weight(ps)	g	90	103	140
	Screw Diameter	mm	28	30	35
	Injection Volume	cm^3	98	113	154
	Injection Pressure	Mpa	270	236	173
	Screw L/D Ratio	L/D	25	23	20
	Injection Rate	cm^3/s	69	79	106
	Plasticizing Capacity(ps)	kg/hr	32	35	45
	Screw Speed	r/min	220
	Hopper Capacity	L	50
Clamping Part	Locking Force	KN	800
	Die Height(Min-Max)	mm	150-355
	Opening Stroke	mm	280
	Space Between Tie Bars	mm	357×357
	Ejector Stroke	mm	100
	Ejector Force	KN	27
Others	Motor Capacity	KW	8.6
	Max. Working Pressure	Mpa	17.5
	Oil Tank Capacity	L	150
	Heating Capacity	KW	6.9
