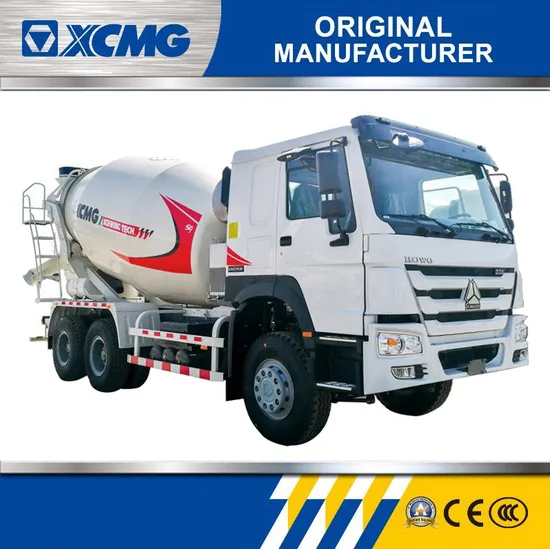

XCMG Used Self Loading Concrete Mixer Machine G10K Diesel Concrete Mixer Truck Hot Sale

Product Description

Product Description
XCMG Second Hand Self Loading Concrete Mixer Machine G10K Diesel Concrete Mixer Truck Hot Sale
* On the basis of in-depth and integrative research on theindustry, the XCMG new generation truck mixers are system optimized by taking the integrated modularization design totruly realize the integrated innovation.
* Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.It can effectively solve the blocking problems in concrete pumps caused bynonuniform concrete.
* Optimized chassis matches with upper parts and such parts as front base andaccessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design.
* Hydraulic pump, motor and speed reducer of such world-famous brands as ZF, Rexroth, Bonfiglioli, PMP, TOP are adopted to make the power more sufficient, system more steady and reliable and service life longer.
Product Parameters

Description	Unit		Parameter value
Performance of mixing drum	Geometric volume	m³	16.8
	Max. diameter of drum	mm	2280
	Drum length	mm	5596
	Mounting tilt angle	°	13.5
	Rotary speed	r/min	0~14
	Charging speed	m³/min	≥3
	Discharging speed	m³/min	≥2
	Residual ratio of discharging	%	<0.7<>
	Range of slump	CM	5~21
Hydraulic system	Oil pump		World-famous brand
	Motor		World-famous brand
	Speed reducer		World-famous brand
	Hydraulic circuit		Closed type
Water supply	Volume of water tank	L	450
	Way of water supply		Air pressure
Overall machine	Chassis brand		XCMG
	Chassis model		NXG3250D5NCX
	Steering wheel		Left steering wheel
	Curb mass	KG	14600
	Driving type		6×4
	Wheelbase	mm	3800+1350
	PTO way		Flywheel PTO
	Outline dimension	(L×W×H)mm	9510×2500×3970
Engine	Model		WP10.350E53
	Rated power	Kw/r/min	257
	Displacement	L	9.726
	Emission standard		Euro V

Product Picture
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
