QYYP-73 Carrousel Splitting Polystyrene PU Sponge Foam Block Cutting Machine

Product Details

Product Description

Product Description

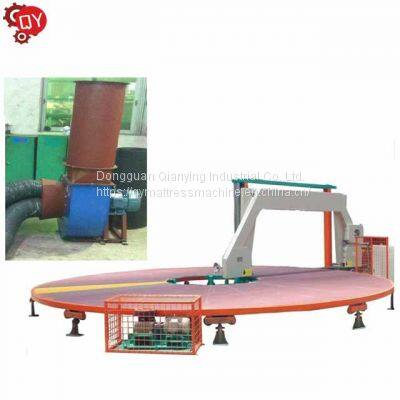

QYYP-73 Carrousel Splitting Polystyrene PU Sponge Foam Block Cutting Machine
This machine adopts the advanced imported controlled techniques and electrical brake device. This machine is mostly used for many quadrate foam once flatly slicing. Its fully automatic controlled operation and cutting accurately.it can be continuously cutout. Its dependability is lofty and production efficiency is better. Meanwhile, we latest research to manufacture the huge carrousel splitting machine successfully. Which the diameter¢10.5 is the biggest in current national. It can be continuously cut the bigger quadrate foam of W2.15*4.5m.(this machine choose with vacuum equipments)
Technical parameters:

Model	QYYP-7300
Cutting foam size	W1500xL2000xH1200mm(4pcs)
Max Cutting foam size	W2150xL3000xH1200mm(3pcs)
Worktable turning speed	0-3.0r/min
Cutting thickness	2-150mm
Blade length	10000mm
Worktable dia(Φ)	Φ7.3m
Total power	8.84KW
Machine weight	3500KG
Machine external size	L7900xW7000xH2400mm

---
