Product Description
Product Description
Description

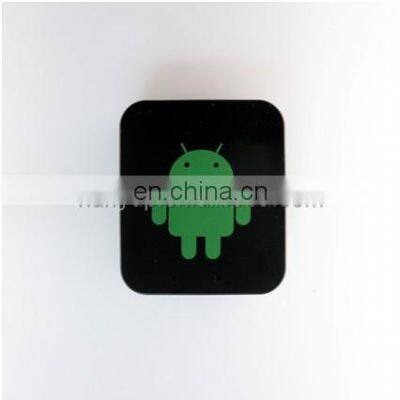

GPRS GSM GPS personal locator
1.GMS frequency: 900/1800MHz or 850/1900MHz
2.Dimension: 44(L)*37(W)*12(H)mm
3.weight: 20g
4.1 Package & AccessoriesPower Charger *1; Ear-Phone*1; User Manual *1; Certificate of Approval*1; Warranty Card*1;
4.2 FunctionsGSM Quad-band frequency (Global use);
9 SOS Emergency Contact Number;
Phone Calls
4.3 Technical ParameterGMS frequency: 900/1800MHz or 850/1900MHz;
GPRS: Class12,TCP/IP;
GPS Accuracy: 10m(2D RM);
Working Temperature: -2°C - +70°C;
Working Humidity: 20%-80%RH;
Dimension: 44.0(L)*37.0(W)*12.0(H)mm;
Net weight: 20g;
4.4 Installation Instructions(1) Before Installation
Open the package, please look over whether the part number is correct and whether accessories complete, if not, please contact your distributor for further assistance;
Choose correct SIM card, a SIM card will be needed to insert into the terminal, please consult distributors options for further use;
Install SIM card, SIM card slot On the terminal back, take out the SIM card slot cover, insert the SIM card, then put the cover back to terminal;
Please Note:
Power off before SIM card operations;
Please make sure that the SIM card has enough credit;
Special GPRS data SIM Card suggested (GSM network only);
(2) InstallationThe terminal is a high-tech GPS positioning device, choose distributor suggested professional installation company, mechanic to install and set-up;
Please follow the terminal installation order, DO NOT REVERSE, during the installation, DO NOT POWER UP THE ERMINAL;
Suggest install in hidden places;
4.5 Please Note:In order to keep it from theft’s damage, hidden place installation suggested;
Please avoid to install along with or near transmitter, ie: Reversing radar, other anti-theft vehicle terminals;
Use ribbons to fasten the terminal, or strong double-faced adhesive tape;
The GSM and GPS antennas’ signal receiving side shall face the sky, and no shield materials to block the signal, ie: metal; Also it shall avoid to interfere signals, 2 antennas separate installation suggested;
Installation place suggested:Within front decorated board under windshield;
Under Dashboard (avoid metal cover);
Within back decorated board under windshield.
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
