Automatic High Speed Pbat PLA Rotary Die Head Biodegradable Polyethylene Polythene HDPE LDPE ABA Blown Film Extruder Plastic Film Blowing Machine

Product Description

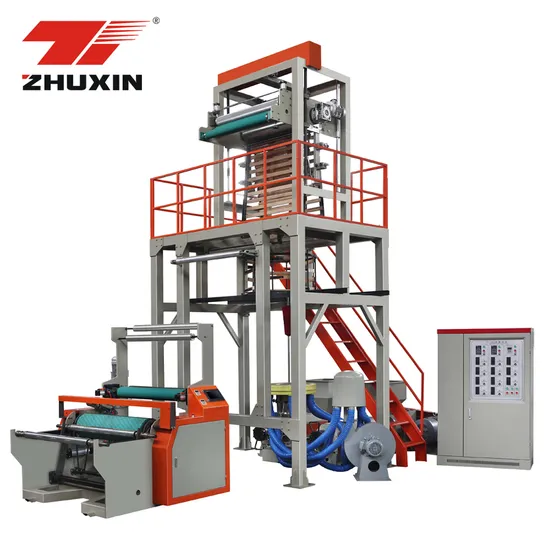

Zhuxin ABA Film Blowing Machine Product Information The machine body is channel steel frame traction frequency friction, with single rolling friction, lift up and down which is suitable for blowing high-low pressure polyethylene industrial fiml and agricultural film. Product Images
Main Technical Parameters

Model		2SJABA-900	2SJABA-1100	2SJABA-1300
Suitable Material		HDPE LDPE LLDPE
Film Width		400-800mm	500-1000mm	600-1200mm
Film Thickness		0.03-0.2mm	0.03-0.2mm	0.03-0.2mm
Max. Extrusion Output	HD	80kg/h	100kg/h	120kg/h
	LD	120kg/h	150kg/h	180kg/h
Extruder
Screw Diameter		Φ50x2	Φ55x2	Φ55x1 Φ65x1
Screw L/D Length		28:1/30:1
Screw Material		Sacm-645/38 Crmoala
Cylinder Material		Sacm-645/38 Crmoala
Cylinder Cooling		370Wx2	370Wx2	370Wx2
Driving Motor		15kw x2	18.5kw x2	22kw x1 18.5kw x1
Gear Box		146x2	173x2	173x1 180x1
Temperature Control		3	3	3
Average Power Consume		30kw	35kw	40kw
Type of Die
Die Size	HD	80	100	120
	LD	180	220	250
Temperature Control		3	3	3
Air Ring		2	2	2
Air Blower		3kw x1	4kw x1	5.5kw x1
Center Steady Stick		2	2	2
Take-up Unit
Roller Width		900mm	1100mm	1300mm
Effective Width		800mm	1000mm	1200mm
Height Adjustable		800mm	800mm	800mm
Take-up Speed		10-65m/min	10-65m/min	10-65m/min
Take-up Motor		1.5kw	1.5kw	2.2kw
Winding Unit
Type		Surface Friction Type
Winding Unit		16N.m	16N.m	16N.m
Winding Speed		10-65m/min	10-65m/min	10-65m/min
Power Supply		380V,50HZ,3PHASE
Outline Dimension(LxWxH)		4.8x3.2x5.5m	5x3.5x6m	5x3.7x7.5m

FAQ
1.Q:Are you a factory or trading company ?
A:We are a factory

2.Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China
About 40 minutes by plane from shanghai (5 hours by train )

3.Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years ,
We will send our professional engineer to install and test machine .So our after-sales service is always reliable.

4.Q:If your machines can print ?
A :Our machines is multifunction , do roll to roll printing , such as paper, plastic film , woven bag , nonwoven .
Surely , you can offer your products, Let us confirm it .We will suggest you the best project.

5 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory, we put more time on the quality control.
Question: Are you Manufacture or Trading Company?
Answer:We are printing machines manufacturer nearly 10years, we had established our own trading company to expand our foreign market business, and provided our customer better service.
Question: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.

6.Q: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.

7.Q:Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.

8.Q: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.


We have been working hard to become your Purchasing Guide and provide you one-stop Purchasing service. We looking forward hear you soon.

---
