En ISO 21003 5 Layer Multilayer Composite Pipes 16mm Mlcp Pex Pipes Pert Pipes for Hot Water

Product Description

Product Description

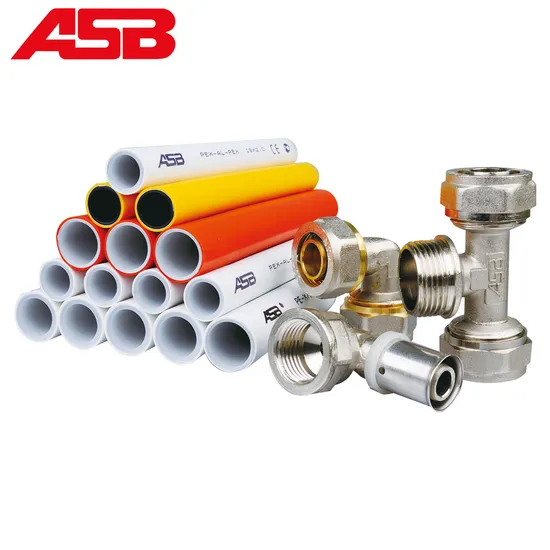

Pex-Al-Pex composite pipes, known as MLCP pipes(Multilayer composite pipes), consist of five layers structure. The inner & outer layers are made of Pex-b material, the middle layer is aluminium core via butt-welded. The special adhesive connects the Pex material to the aluminium layer.
ASB Pex-Al-Pex composite pipes combine the advantages of the metal pipes and plastic pipes, the superior performance makes ASB pipes be shipped to over 90 countries in the world.
Product Parameters

Szie/mm	1216	1620	2025/2026	2632
Burst Pressure/MPa	8	7	6	5.5
Pipe Ring Strength/N	2300-2400	2500-2600	2890-2990	3270-3320
Min Average stripping Force/N	25	28	30	35
Long-term Hydrostatic Strength/MPa	2.42MPa, 1h, 95ºC
Long-term Working Temperature	60-75ºC/140ºF-167ºF
Working Pressure	1.0-1.5Mpa/145psi-217.5psi
Working Life	50years

Installation Instructions
With Compression Fittings
With Press Fittings
Company Profile
ASB are the manufacturer and supplier of underfloor heating systems since 1989 and makes high-quality components.
We believe that when installed correctly, ASB underfloor heating systems can be of the highest standard to help eliminate unwanted problems.
Contact us if you would like to be considered in importing the pipes and accessories from us!
Our Advantages
1-Good Appearance and Light Weight
The inner and outer walls of the product are smooth, the fluid resistance is small, the shape is beautiful, the weight is light than metal pipes, it is convenient for transportation
2-Long Life
High pressure-resistant and high-temperature resistant. ASB Pex-Al-Pex Pipes' life can be 50 years under normal conditions
3-Hygiene
Green building materials, non-toxic, non-polluting, not only for hot and cold water pipes, but also for potable water systems
4-Good Thermostabilization
It can be used for a long time when the working water temperature is 70ºC, meeting the requirements of the hot water system in real building.
5-Insulation and Energy Saving
The Thermal Conductivity of ASB Pex-Al-Pex Pipes are only 0.45w/m.k, just 1/100 of the steel pipe
6-Easy installation
No welding, soldering, thread cutting or bonding, just connected to fittings with tools
FAQ
1. Are you a manufacturer or a trading company?
We are the manufacturer since 1989, we have over 30 years experience in this industry.
2. What size of pipes can you make?
12mm, 16mm, 18mm, 20mm, 25mm, 26mm, 32mm, 40mm, 50mm, 63mm
3. What colour of pipes can you do?
3.1 Usually for water pipes, inside transparent-outside white, inside transparent-outside red, inside orange-outside orange
3.2 Usually for gas pipes, inside black-outside yellow, inside transparent-outside yellow
4. What packing coils are you offering?
For small size pipes, 100m, 200m, 300m, 500m/coil
For big size pipes, 25m, 50m, 100m/coil
Also, we can do straight pipes, 4m/pc, 5m/pc
5. Which port is near your factory?
NINGBO PORT or SHANGHAI PORT
6. What's your Price Term?
Usually, we offer based FOB NINGBO, CHINA. We can also quote CIF per your request.
7. What's your Payment Term?
The popular one is a 30% deposit and the balance before shipping.
8. What's your Delivery Time?
It depends on your Items and Quantity for example, we can ship a 40HQ container of basic goods within one week.
9. If you can accept OEM processing?
Yes, we can do OEM and both ODM

---
