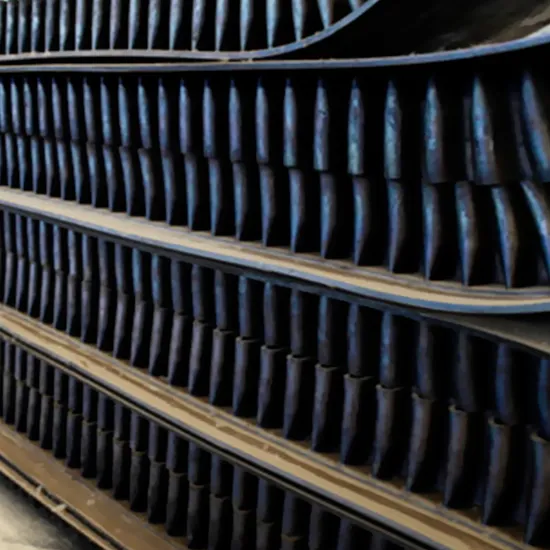

Corrugated Sidewall Rubber Conveyor Belt (0-90degree transport)

Product Description

Corrugated Sidewall Rubber Conveyor Belt (0-90degree transport)
Product Desription
1. Specification

Belt width (mm)	Sidewall height (mm)	Cleat height (mm)	Effective belt width (mm)
400	60		-
	80	70
	100	90
	120	100
500	60		250
	80	70
	100	90
	120	110
	160	140
650	60		250, 300, 350
	80	70
	100	90
	120	110
	160	140
	200	180
800	60		350, 410, 460
	80	70
	100	90
	120	110
	160	140
	200	180
	240	220
1000	60		460, 550, 640, 690,
	80	70
	100	90
	120	110
	160	140
	200	180
	240	220
	300	270
1200	60		460, 550, 640, 690
	80	70
	100	90
	120	110
	160	140
	200	180
	240	220
	300	270

2. Sructure
-Sidewall conveyor belt consists of base belt, sidewalls and cleats. There are usually transverse steel wire reinforcement inside top & bottom covers of the base belt.
-Cleat types: TC
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
"TC" normally used from 0 degree to 90
3. Standard: GB/T7984, HG/T4602, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
Application
Corrugated Sidewall Conveyor Belt (Steep angle sidewall conveyor belts) is normally used to bulk materials at inclines of up to 90 degree in fields of construction industry, salt mining, stones and earth, fertilizer, chemical industry, recycling industry, agriculture.
It also used together with belt conveyor for horizontal & short-distance transportation. (no cleats the moment)
1. High efficiency
2. Stuff with large obliquities
3. Largest angle is ninety degree
4. Low maintain cost
5. Easy operation
Detailed Product Description
Applying for large angle transporting,the maximum angle is 90 degree.
Application:
Applying for large angle transporting,the maximum angle is 90°.
Characteristics:
1.To save time
Because of large angle transporting,thus can be shortened the horizontal length and save the space of laying area.
2.Strong transporting capacity
Compared with common conveyor belt,with large carrying cross section,has stronger transporting capacity than same width conveyor belt.
3.Without sidewall plate
Because without sidewall plate,thus avoid the local abrasion.
4.Impossible to use small roller
Impossible to use the traditional size of small roller.
5.Because the baseband uses special canvas core to improve the canvas,then improve the anti-broken ability of belt at the same time.
6.The sidewall plate and diaphragm are adhesive with baseband through heat vulcanization method,thus ensure the bonding strength.
Baseband:
Baseband is consisted of upper rubber,lower rubber,core and transverse rigid layer.Upper rubber thickness is 3-6mm,the lower rubber thickness is 1.5-4.5mm.The core supports tensile force,the core are:Cotton(CC),Nylon,EP.To improve the transverse rigid ability,it has added special reinforced layers in the core,named transverse rigid layer.Baseband has the same width with common belt.
Cleat:
The cleat is produced by fiber load materials.With large anti-shock ability and impact resistance,thus avoid the distortion of stress.The cleat has T,TS,C,TC,TCS five types.TS and TCS types are mosaic pattern.The conveyor angle is small than 40°,using T or TS cleat;the conveyor angle is bigger than 40°,using C,TC or TCS cleat.
Corrugated sidewall plate:
According to the carrying capacity,there are three types corrugated sidewall:Light type(N),Medium type(S),Heavy type(ES).

---
