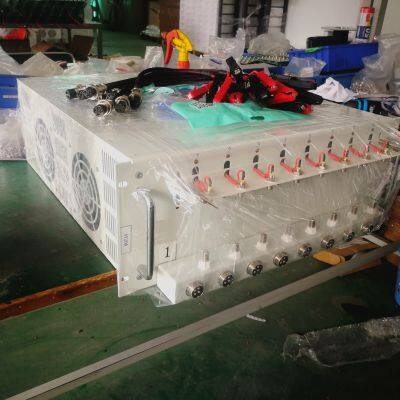

5V 10A/20A/30A/60A/100A 80 Channel Prismatic Cell Tester Capacity Grading Machine Charge Discharge Machine
The equipment is mainly composed of computer, communication interface and battery detection cabinet. The battery detection cabinet is composed of a fixture and a board for placing the fixture, a constant current and constant voltage source, a storage control circuit, a sampling circuit, a single-chip microcomputer and a control panel.
Supporting Software Functions
A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;
B) Battery capacity indication of any section (up to 100 sections);
C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;
D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);
E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;
F) Set operator authority and operate in different levels;
Display charge discharge curve and cycle chart;
Cell Grading Machine Parameters
No
| Item
| Parameter
|
1
| Channels
| 80 channels
|
2
| Machine size
| 500mm×400mm×250mm
|
3
| Box color
| Default beige (can be customized)
|
4
| Suitable cell type
| coin cell, pouch cell and cylindrical cell
|
5
| Clamp type
| upper positive and lower negative, fixture (tip/flat/two pieces) optional
|
6
| Clamp spacing
| 40mm
|
7
| Support battery height
| adjustable within 100mm
|
8
| Working power supply
| AC220V±10%, 50HZ
|
9
| Working power consumption
| ≤120KW
|
10
| Working environment
| temperature 0～40℃, relative humidity ≤80%
|
11
| Cooling method
| fan
|
12
| Voltage measurement range
| 0～5V
|
13
| Battery voltage range
| charging 0～4.5V; discharging 4.5～2V
|
14
| Constant voltage range
| 2.5～4.5V
|
15
| Voltage accuracy
| ±(1‰ reading+1‰ full scale)
|
16
| Voltage resolution
| 1mV
|
17
| Voltage stability
| ≤1‰
|
18
| Current range
| charging 10mA～10A; discharging 10mA～10A
|
19
| Current accuracy
| ±(1‰ reading+1‰ full scale)
|
20
| Current resolution
| 1mA
|
21
| Current stability
| ≤1‰
|
Product Description
Battery Analyzer Capacity Tester
TOP-C512 18650/26650/32650 Battery Capacity Tester for 5V3A/5A 512 Channel Li-Ion Battery Charging Discharging Testing Tester BK- 3512L
Performance characteristics
Main Technical Parameters
Number of device channels
| 512 (Single CPU control)
|
Constant current range
| 0.05 ~ 6A, resolution 1mA
|
Accuracy of current measurement
| ±0.1%FS
|
Sampling current accuracy
| ±0.1%FS
|
Voltage measurement range
| 0 ~ 5V, resolution 1mV
|
Accuracy of voltage measurement
| ±0.1%FS
|
Charging and discharging voltage range
| Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V
|
Constant voltage setting range
| 3 ~4.5V
|
Accuracy of constant pressure setting
| ±0.1%FS
|
Time range
| 0-30000 min / step, accuracy: ± 0.1%
|
Heat dissipation mode
| Cold wind
|
Battery Clamp
| Cylinder clamp, polymer clamp
|
Work loop source
| Temperature: 0 ~ 40 ℃,
relative temperature ≤ 85%
(no water condensation)
|
External size
| 1600mm (W) × 550mm (L) × 1840mm (H)
|
Working power supply
| Three phase four wire system,
AC380V ± 150%, 50Hz
|
Power consumption at full load
| ≤9KW
|
Minimum configuration of computer system:
| 1. Dual core CPU or above,
2. 4G or above memory,
3. 500GB or above hard disk space,
4. EGA / VGA color display, one CD-ROM, one mouse
5. Windows XP or above operating system, one 6. RS232 serial communication port available.
7.The computer system shall be self configured by the user, and the number of the computer system shall be determined according to the actual needs.
|
General equipment configuration and standards
| 1. Appearance color of equipment,
Case: silver white,
Cabinet: silver white.
2. Attach the Chinese operation manual and software U disk.
|
