Basic Info.
Machine Air Intake
3bar-6bar
Input Power
220V 1p 50Hz 50W
RAM Force
0-8 Tons Infinitely Adjustable
Machine Size
1100*840*2000mm
Transport Package
Wooden Box
Specification
1100*840*2000mm
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
120.00cm * 85.00cm * 210.00cm
Package Gross Weight
500.000kg
Product Description

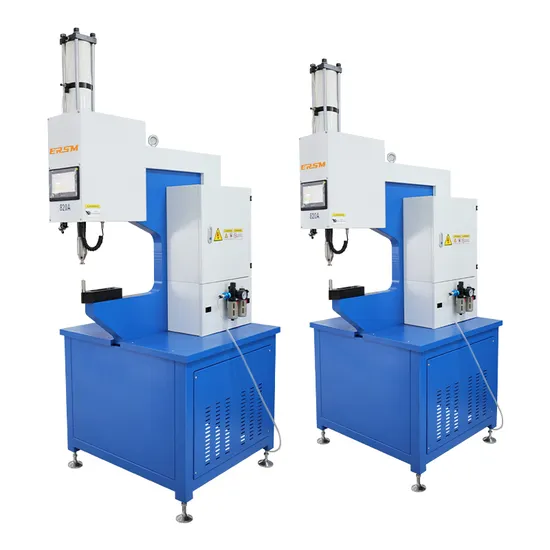

Product Features
Economical and reliable cast steel frame, super large working throat depth
Can be flexibly adapted to different processing requirements
Driven by compressed air at 2bar-6bar, it can generate 80KN of ram force without hydraulic system
The stamping force is steplessly adjustable within the specified range
It is easier to operate the equipment using PLC control
Able to work effectively with manipulators
Product Parameters
| Model | 820A |
| Machine Air Intake | 3bar-6bar |
| Input Power | 220V 1P 50HZ 50W |
| Upper Die Reciprocating Stroke | 100mm |
| Cylinder Stroke | 100mm |
| Ram Force | 0-8 Tons Infinitely Adjustable |
| Throat Height | 340mm |
| Throat Depth | 500mm |
| Force Stroke | 8mm |
| Rack Thickness | 135mm |
| Machine Size | 1100*840*2000mm |
| Weight | 450KG |
FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern
Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
>>
