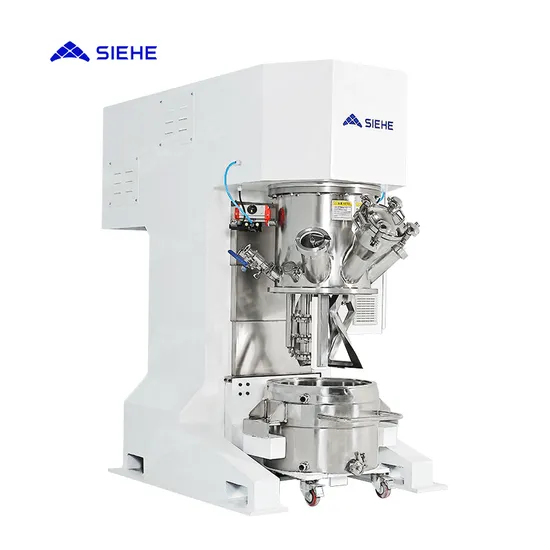

Structural Adhesive Mixer Machine High Viscosity Vacuum Dual Planetary Mixer

Product Description

Product Introduction
Mid-batch Dual Planetary Mixer is new and high efficient mixing equipment designed for universities, research institute and factory lab. The machine consists of low speed agitator and high speed disperser, has good mixing, reacting, kneading, dissolution effect, especially suitable for the dispersing and mixing of solid-liquid, liquid-liquid phase; It's quite fit for high viscosity product such as adhesives, silicone, Lithium battery slurry etc. due to its super strong output torque; The equipment has scraper which can scrape the bottom of the tank without corner or residue; also there are extrusion device and sliding rail to work together with this machine, so that realizing the integrated operation of mixing and discharging.

Materials Viscosity	≤10,000,000 cps
Production Capacity	30-80L (Working volume)
Application Industry	Suitable for dispersing and mixing materials in industries such as coating, putty, adhesive, energy, electronics & electrical appliances, cosmetics, food etc.
Applicable Materials	Various slurries with viscosity less than 1,000,000cps, solid content under 90% such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, jam etc.
Characteristics	Various types of blades can be selected according to the viscosity and characteristics of materials; it is equipped with pressing equipment for discharging, and can be equipped with vacuum system and heating system.

LAB TYPE
2-20L
Mixing and discharging togetherMith vacuum systemHeating/cooling/insulation
MID BATCH TYPE
30L,50L,80L Electrical liftingTank liftingHeating/cooling/insulation PRODUCTION TYPE
100-3000L
mixing and discharging togetherwith vacuum systemheating/cooling/insulation High Mixing Efficiency, Wide Application
The Dual Planetary Mixer has two sets of agitators and a set of high speed dispersing shaft revolving around the container axle and at the same time rotating at high speed, so that the materials are mixed rapidly under the action of strong shearing and kneading force.
Safe and Convenient Operation
Adopt hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability; with barrel holding device for fixing the tank rapidly to prevent any possible accident due to tank displacement. There is sliding rail device between the mixing and extruding tank, convenient for moving tanks, realizing the integrated operation of mixing and discharging.
No Residue on the Wall, Clean Discharging
There is scraper on the planetary frame rotating together with the planetary frame, it clings to the container and scrape the materials on the wall off continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scrape all materials sticking to the wall off without residue, increasing the mixing effect.
Customized Options
Different options are available such as explosion-proof type, closed type, heating type, with PLC intelligent control type, etc. Material can be customized to be SS316L or special Spraying materials. Detailed ImagesTwin screws + PTFE scraper + disperserTwin screws + PTFE scraper + two dispersersOpenings on the covers customized:
--powder feeding port: with lid and lock;
--liquid feeding inlets: with manual valves or auto valves;
--sight glasses: one with lamp and another with wipe;
--vacuum port and vent port and pressure gauge port;PLC + Touch screen:
to acheive inteligent control, support:
--recipe input and output;
--auto control and interlock with other machines such as heater / chillerStainless steel movable tank / vessel:
--with handrail and castors and brake wheels, easy for moving and cleaning;
--inner surface processed by vertical lathe, great cylindricity
Model Selection
Industrial Applications
Related Products Adhesive & Sealant Production Line Production Type Double Planetary Mixer Lab Double Planetary Mixer Company InfoSIEHE GROUP established in year 2009, start with liquid machine manufacturing. After more than ten years of efforts, SIEHE Group has developed into large-scale machinery industry group company. lts headquarter is located in Honggiao, Shanghai, China. lts production bases are in Jinshan, Shanghai,Wuxi and Yangzhou in Jiangsu, with a total plant area around 32000m2. The production bases are equipped with more than 160 sets of advanced production processing and testing equipment including: turning and miling center, large gantry five- axis machining center, horizontal five-axis boring and miling machining center, Vertical five axis machining center, vertical CNC lathe machining center, trilinear coordinates precision measuring instrument, image measuring instrument precision altimeter etc.. With strong production and quality control capacity, SIEHE group carries out product design, processing,assembly and testing in full accordance with the lSO9001 quality management system, and has passed professional institution certification.
Production Equipment Five-axis Gantry Machining Center Turning and Milling Center CNC Boring and Milling Machining Center CNC Vertical Lathe Vertical Machining Center CNC Five-axis Gantry Machining Center Customer Photos FAQ1Payment terms?
A1 L/C, T/T, D/P,cash;2Trade terms?
A2 In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP CIF and DDU;3Validity of quotation?
A3 Within 30 days;4Modes of shipment?
A4 By sea, by railway, by air and by express;5Warranty?
A5 One year and lifelong service provided at cost;6Installation & Commissioning & Training?A6 For single set of machine, usu. tel or mail guidance for installation;For production line, paid overseas engineering service provided to customers'factory for installation and debugging, as well as training the worker to use the production line.

---
