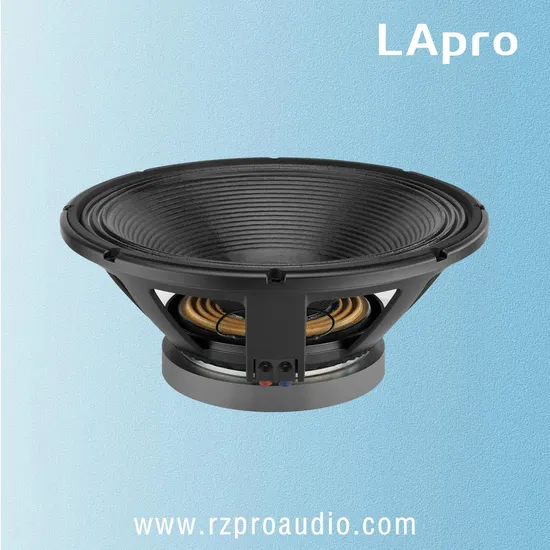

18inch Lf18X451 Custom Order Professional Audio Sound Big Event Acoustic Speaker

US$30.00-78.00 2 Pieces (MOQ)

Basic Info.

Model NO.
S18WF11530
Cone
Paper with UK Coating
Spider
USA Material Spider
Voice Coil
Copper in/out Fiberglass Bobbin
Magnet
Ferrite
Type
Subwoofer
Transport Package
Strong Carton
Specification
Shipping Weight ( 1 unit) 15 kg
Trademark
OEM/ODM
Origin
Guangzhou, China
HS Code
8518290000
Production Capacity
3000/Month

Packaging & Delivery

Package Size
52.00cm * 52.00cm * 25.00cm
Package Gross Weight
16.700kg

Product Description

You didn't just buy speakers here, you also buy our quality controlled ability , we produce with Tai wan and UK glue, copper in/out voice coil with fiberglass bobbin to proof high temperature and TAI WAN material spider more stablity, reliablity. You will be away from headache quality complains.
Ruizheng Speakers primary line consists of high frequency drivers and coaxial components, and cone drivers. We have made a strong commitment to provide a well-balanced line of Low Frequency drivers that range from 6.5" to 24", as well as a very complete line of High Frequency drivers. Our engineers have optimized each design with CLIO software to ensure each design operates to its fullest potential time and time again. From nightclubs, to stadiums, to concert halls around the world, our products are chosen based on their reliability, consistency and most of all for their outstanding sound quality.
https://ruizhengsound.en.made-in-china.com/product/FOPGYuMAgRVp/China-15inch-Loose-Magnetic-Material-Punchful-Bass-Sound-Bar-Speaker.html
MODEL S18WF11530
Specifications Thiele Small Parameters
TYPE Subwoofer Fs 35 Hz
Nominal Diameter 465 mm/18 in Re 5.3ohm
Rated impedance 8 ohm Qms 5.78
Nominal Power (AES) 1800 W Qes 0.43
Continuous Program Power 3600 W Qts 0.39
Sensitivity(1w/1m) 96 dB Vas 149L
Frequency Range 35Hz-1500Hz Sd 0.1232 m2
Voice Coil Diameter 115 mm/4.5 in Mms 243 g
Voice Coil Material Copper out/in BL 27.5 T.M
Mounting lnformation Shipping lnformation
Overall Diameter φ466 mm/φ18.3 in Net Weight ( 1 unit) 14.9 kg
Bolt Circle Diameter φ443 mm/φ17.4 in Shipping Weight ( 1 unit) 16.7 kg
Mount Baffle Cut-out φ423 mm/φ16.7 in Package Size ( 1 unit) 52x52x25cm
Depth 214 mm/8.43 in
Bolt Hole Diameter 8-7mm/8-0.26 in

Founded in 2011, ruizheng audio is designing and distributing amplifier, speakers, supplying OEM/ODM components to many of the professional audio brands in the market today.
