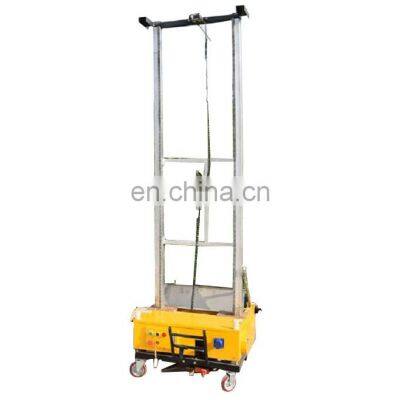

Low price Miniature mortar plaster machine
Advantages:
1, The volume is small, the weight is light , easy to move (automatic walking, automatic positioning, automatic adjustment of the plaster thickness , automatically adjust the plaster joints ) , easy to operate .
2,The unique design of the dual- rail automatic lift , automatic positioning , the main rail design height of 1.96m , host design : wide 78cm x long 80cm . Breakthrough of the biggest challenges of the whitewashed wall machine manufacturers of domestic and market can not solve so far for different floors of a high degree of automatic movements , and an effective solution across the room the construction of fills .
3,The machine is designed to squeeze plaster , plaster thickness up to 0.2 - 3cm not fall off , further strengthened the bond strength of the mortar and the wall , dense degree more than the manual more than five times , an effective solution to the artificial plaster in mortar off and hollowing phenomenon .
4,Positioning mode , our company developed a complete positioning system , combined with laser positioning ; the positioning is simple , fast , high precision . Really reached the whitewashed wall of the precedent of automation at home and abroad , to effectively guarantee the accuracy of wall roughness and verticality.
5,The professional design of automatic retractable motor adjustment control verticality and the second rail positioning to achieve the plaster , the whereabouts of the mobile location at the same time , significant savings in time and solve this problem up outside the host .
6,The unique design of the plaster thickness and the second plaster joints automatic retractable motor adjustment , the adjustment range between 2mm - 50mm , free to run , to achieve a degree of automation .
7,Yin and yang, the angle forming device is specifically designed based on years of experience in construction company's technical staff .
8,This machine equipped with operating platform, very lightweight, weighing only 20Kg.The base is provided with a universal wheel, can be very handy operation.
The main technical performance indicators.
Single-phase motor
| 0.65kw
| Startup mode
| Control button ( distribution box)
|
Motor speed
| 1440n/min
| Reducer
| Reduction ratio30 :1
|
Plastering speed
| 3.5m/39s
| Plaster width
| 0.3m- 0.8m
|
Plastering height
| 0.5- 3.5m
| Plaster efficiency
| 2.56 m2/39s
|
Plastering time
| 39s
| A plastered area
| 2.5m2/39s
|
Secondary calender time
| 39s
| Secondary pressure light area
| 2.5m2/39s
|
Flatness error
| ≤3mm
| Vertical error
| ≤ 3mm
|
Flatness, plaster thickness ,
Plaster joints, adjust the motor
| 24v 30w
| Walking speed
| 10m/ Minute
|
Vertical adjustment motor
| 24v 30w
| Alignment guide motor
| 550W
|
Walking mot
| 550w
| Reducer
| 30 :1
|
Lifting motor
| 0.65kw
| Reducer
| 30 :1
|
Console shape size
| 30cm*50cm*80cm
| Console weight
| 20kg
|
The plaster drive motor
| 650w
| Reducer
| 30 :1
|
The main rail height
| 176cm
| Positioning rail height
| 176cm
|
Efficiency: 80m2 / hour
Host Dimensions:78cm × 80cm × 40cm
Positioning time : 5 seconds
Plaster method: squeeze plaster
Motion way: Walks automatically
Lifting speed : 3.5m/39 seconds .
Machine weight : 80Kg
A plastering width:80cm
The main rail height: 196cm
30cm X 50cm X 80cm Console Dimensions : 30cm X 50cm X 80cm
Operating weight: 20kg
-----------------------------------------------------------------
PACKING LIST:
Main machine: 95x75x45cm 100kg
Rail : 190x70x30cm 90kg
Control cabinet: 80x50x40cm 20kg
Total volume: 1.02 cbm
------------------------------------------------------------------
Accessories list(for free):
1.Positioning rule 2.positioning aluminium alloy bar
