Thermal Conductivity Tester (Guarded hot plate apparatus)

Product Description

Product Description

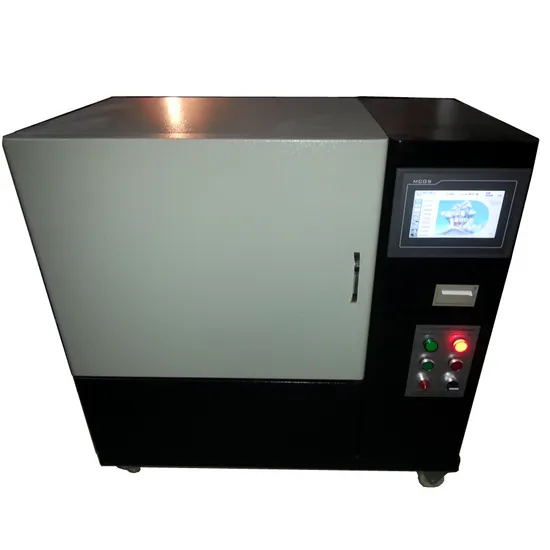

DRX-II-300A Thermal Conductivity tester (Guarded hot plate apparatus)It is mainly used to test the thermal conductivity of construction insulation materials, glass, fiber, foam and so on. Testing materials include fiber board, loosing filler glass fiber, ceramic fiber (XPS/EPS/PUR, etc.), foam plastic, inter-layer composite plate, vacuum plate, rubber products, cement products, concrete brick, powder materials, filler materials, gypsum board and so on. The tester is in line with the latest national standard GB/T 10294-2008 guarded hot plate apparatus, ASTM C518, and ISO 8302 Standard Test Method for Steady-State Heat Flux Measurements and Thermal Transmission Properties by Means of the Guarded-Hot-Plate Apparatus. It is in full compliance with the national thermal conductivity measurement standard with its stable and accurate temperature control technology, computer interface, software's real-time monitoring and control, data processing and saving connecting. With these advantages, it is applied widely in materials properties detection organization, scientific research institution, quality detection department of factory, institutions of higher education teaching and research.
Main features:
1. With real-time measurement and reading devices, it can automatically measure test piece
2. With test piece pressure online real time detection, display and control functions
3. It has fuzzy guarded plate that is hot plate temperature tracking and precision control technology
4. Self-calibration function of the thermal conductivity and heating power
5. Compensation for test piece's thickness and the average temperature
6. Windows automatic thermal analysis measuring software system, data analysis and reporting output function.
Product ParametersMain technical parameter:

Thermal conductivity range	0.001 ~ 2.3 W/m.K
Cooling system	External water bath
Hot plate temperature	RT~99.99ºC
Cold plate temperature	-10°C~ 60 ºC ± 0.1°C thermostatic control with high precision digital display temperature instrument
Cold, hot plate temperature difference	20ºC
Temperature accuracy/resolution	0.1ºC/0.01ºC
Sample size(Max)	300×300×(5-50) mm
Automatic thickness measurement	High-precision displacement sensor is used and connected with computer to measure thickness automatically; resolution 0.01mm.
Thermal resistance range	0.1 ~ 8.0 m2K/W
Repeatability	±1%
Accuracy	±3%
Environmental condition	room temperature: 18~25ºC, humidity: 20~80%RH
Data result analysis	Automatic thermal analysis software, Windows 10/7/XP, English
Supply voltage	AC 220V±5%, power: 3.0kw
Product list:	DRX-II-300A Test host with touch screen system, Accurate thermostatic cooling bath, Testing software, *Calibration standard sample(optional)

Detailed Photos
Thermal conductivity tester sample room, with automatic lifting mechanism
Touch screen operating system and automatic printing of test resultsAssembly and commissioning
