12t/H Full Automatic Beverage Mixer for CO2 Gas

Product Description

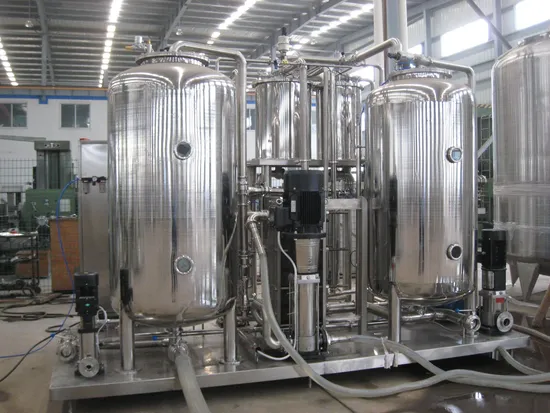

QHS - 120 beverage mixing machine is used for producing all kinds of carbonated beverages (Mixing with water, syrup, and CO2), for example lemon, coca cola so on. It is the main equipment in the whole beverage production line. (It is the key device especially for middle and higher standard beverage manufacturer).

Characteristics
:
(1). This machine adopts advanced technical in chemical field. - Static Mixing device (also called carbonization device), it has several advantages such as big acreage of air liquid transmission, low losing for resistance, higher efficiency, low wasting for energy resource, and compact structure, it also adopts multi-grade centrifugal pump, which has favorable performance and low noise. It ensures well performance for the whole equipment.
(2). Mixing ratio is precise and easy for adjusting. This machine can conveniently adjust the ratio and quantity of syrup and water without changing any components.
(3). This machine can conveniently adjust gas quantity of carbonation in terms of the requirement.
(4). This machine has complete automatic controlling system; it has advantage of concise structure, harmonious working action, continuous producing, and higher automatic performance.
(5). This machine has cleaning procedure in original position, favorable structure, it can conveniently sterilize with chemical, hot sterilization and rinsing with sanitized water to meet the rules' requirement of food's sanitation.

No.	Malfunction	Cause	Trouble-shooting
1	The pump is running without any output of liquid.	There is air existing inside the pump.	Pour relative liquid into the pump to drive the air out.
2	Solenoid valve can not be open or too slowly open.	The respective solenoid has problem;	Check the solenoid valve; or adjust the air input or output proper.

---
