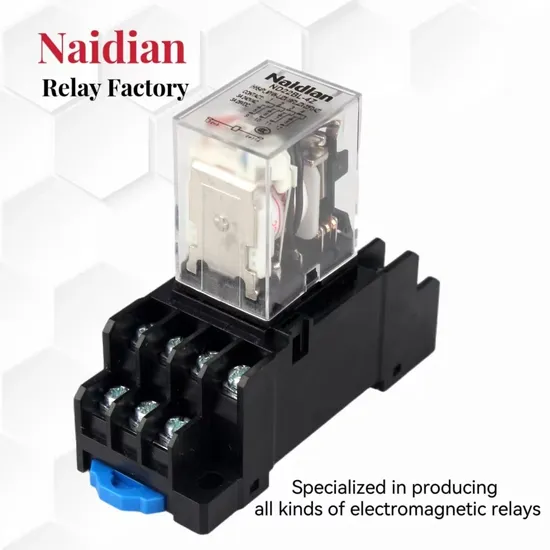

Relay Manufacturer Produce Industrial 14pins 5A My4 Hh54p Miniature Electromagnet Relay

US$0.84 50 Pieces (MOQ)

Basic Info.

Model NO.
MY4/HH54P
Phase
/
Electricity Type
Ac
Number of Pole
4
Load
Medium Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Type
Electric Parameter Relay
Frequency
50/60Hz
Contact Capacity
5A
Rated Voltage
24V, 48V, 110V, 220V, 380V
Certifications
CE
Warranty
1 Yr
Transport Package
Carton Packing
Specification
Miniature
Trademark
Naidian
Origin
Zhejiang China
HS Code
8536490090
Production Capacity
100000

Packaging & Delivery

Package Size
34.00cm * 22.00cm * 20.00cm
Package Gross Weight
3.000kg

Product Description


Contact Parameter
Contact Form 2Z, 2C, 3Z, 3C, 4Z, 4C
Contact Resistance ≤50mΩ(1A 6VDC)
Contact Material Silver Contact
Contact Load 5A 250VAC/28VDC 3A 250VAC/28VDC
DC Coil Specification Table
Rated Voltage Suction Voltage Release Voltage Coil Resistance
VDC ≤VDC ≥VDC Ω±15%
5 4.0 0.5 28
6 4.8 0.6 40
9 7.2 0.9 90
12 9.6 1.2 160
24 19.2 2.4 600
48 38.4 4.8 2650
110 88.0 11.0 13500
220 176.0 22 43000
AC Coil Specification Table
Rated Voltage Suction Voltage Release Voltage Coil Resistance
VAC ≤VAC ≥VAC Ω±15%
6 4.8 1.8 12
12 9.6 3.6 45
24 19.2 7.2 180
36 28.8 10.8 500
48 38.4 14.4 750
110 88.0 33.0 4300
220 176.0 66.0 14300
220/240 192.0 72 16000
380 304 114 32000
Dimension Bottom View
Certifications
Company Profile
------------------------------------------------------------------------------------------------- Established in 1989, Naidian Group Co., Ltd. is located in Liushi where is regarded as low voltage electrical equipment production base of China, specializing in manufacturing and selling industrial electronic products. At the same time, we are a pluralistic modern enterprise integrating scientific research, trade, finance and investment together. We mainly produce all types of relays, such as time relay, miniature relay, general purpose relay, PCB relay, liquid level relay, solid state relay, high power relay, motor protector, and counter, which currently sell well in domestic market, and are exported to South America, the Mid East, Southeast Asia, Europe, Africa and other regions around the world. We have received praises from customers. ISO9001 quality management system has been strictly operated in our corporation. In addition, some products have passed the attestation of CCC, CE, and UL. Our company also has introduced advanced equipment for constantly research and development of new products. Reliable quality and excellent service have contributed to our company's good reputation. We will insist on providing better service for our customers and others who concern about us and creating mutual benefits with you.
FAQ
------------------------------------------------------------------------------------------------- 1. Who we are? We are based in Zhejiang, China, start from 1989,sell to Domestic Market(80.00%),Mid East(20.00%). There are total about 51-100 people in our office. 2. How we guarantee The quality? Always pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Electromagnetic miniature relay,Time control relay,Electrical network protection relay 4. What services can we provide? Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T; Language Spoken:English,Chinese
