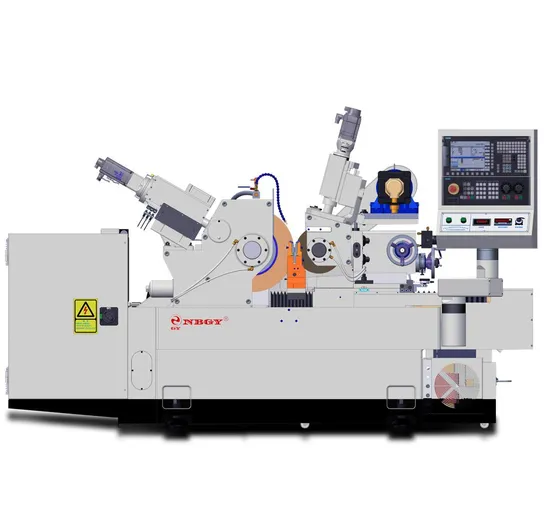

About the Centerless Grinding Machinine What is CNC centerless grinder? CNC centerless grinding machine is an efficient grinding machine, it adopts computer control system, can automatically calculate the size of the material before processing, need to grind the shape, according to these parameters control the grinding process, in a short time to complete the precise grinding operation. Centerless grinder is a machine tool that uses abrasive or grinding wheel to cut the workpiece surface. Specifiation of this 455B Centerless Grinding Standard Machine
| Model: | GY455B | Hydraulic pump drive motor: | 2HP(0.75w) | Adjustment wheel rotation Angle: | plus 6 ~ minus 6 ° |
| Grinding range (diameter): | Ø1mm~60mm | Cooling pump drive motor: | 1/4HP | Mechanical dimensions (L * W * H): | 3350x2100x1763mm |
| Grinding wheel size: | Ø455x205x Ø228.6mm | Calibration of adjustment wheel feeding hand wheel: | 4mm/round ; 0.05mm/scale | Packing size (L* W * H): | 3556x2300x1850mm |
| Adjustment wheel size: | Ø225x205x Ø111.2mm | Calibration of adjustment wheel fine tuning hand wheel: | 0.114mm/round;0.001mm/scale | Machine weight: | 3623kg |
| Grinding wheel speed: | 1460R.P.M./min | Table setting minimum servo feed: | 0.0002mm | Packing weight: | 3823kg |
| Adjustment wheel rotation speed: | 0~250RPM./min | Grinding wheel servo modified minimum servo feed: | 0.001mm | | |
| Grinding wheel drive motor: | 11.0kw | Calibration of adjustment whee modified feeding hand wheel: | 2.0mm/round ; 0.01mm/scale | | |
| Adjustment wheel drive motor: | 3.0kw | Adjustment wheel tilt Angle: | Plus 5 ~ minus 3 ° | | |
