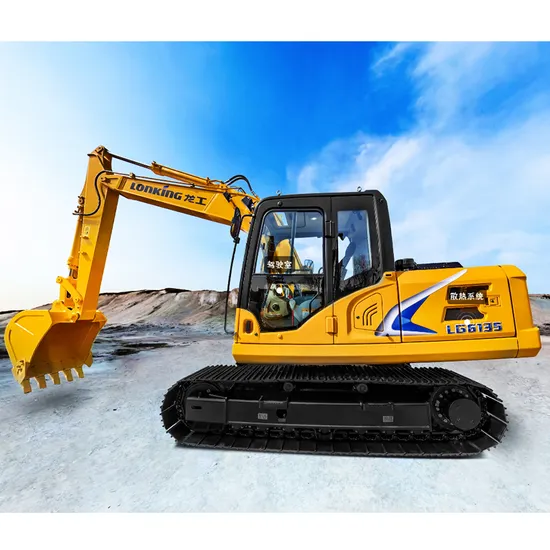

Cummins Qsf3.8 Engine Digger China Lonking Crawler Excavator

US$25,888.00-46,598.00 1 Set (MOQ)

Basic Info.

Model NO.
LG6135
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
CE
Condition
New
Self Weight
13600kg
Shipping Length
7880mm
Shipping Height
2868mm
Tumbers Distance
2880mm
Radius Swing Center to Rear End
2400mm
Counterweight Ground Clearance
924mm
Track Gauge
1990mm
Overall Width
2500mm
Width of Upper Structure
2500mm
Track Shoe Width(Standard)
500mm
Min. Ground Clearance
422mm
Origin
China
HS Code
8429521200

Product Description

Product Description
The whole machine Approximate Weight (kg) 13600
Bucket Volume (m') 0.56
Pressure to the Ground (kPa) 45
Travel Speed (Low/High)(km/h) 3.34/5.5
Rotation Speed (rpm) 11.9
Gradeability(' ) 35
The engine Model Cummins QSF3.8
Power (kW/rpm) 74/2200
Displacement (L) 3.8
Fuel Tank Capacity (L) 270
The hydraulic system Work Pressure (MPa) 31.4/34.3
Flow (L/min) 120*2
Hydraulic Tank Capacity (L) 159
Digging force Max. Bucket Digging Force(kN) SAE/ISO 85/99
Max. Arm Digging Force (kN) SAE/ISO 70/72

Product structure

Hydraulic system The main hydraulic parts are imported.Automatic sensor control, with regeneration priority and other functions.
More flexible response, higher work efficiency and more precise operation.
Structure Comprehensive optimization of structure parts process.3D CREO Software Structural Analysis.
High standard automatic welding technology.Ensure structural stability and durability.
Cooling System Adopt new cooling system,Improve heat dissipation and reduce noise 10% increase in cooling effect.
Longer service life of the engine and hydrauli system.
CAB Adopt a new look.Optimizing the force and structure of the pilot control.Greatly relieves operational fatigue.
Electronic control system Display and control system upgrade,The control system reacts faster.More precise power matching
Power system Standard Cummins QSF3.8 engine National III emission standard.Lower fuel consumption and less noise
