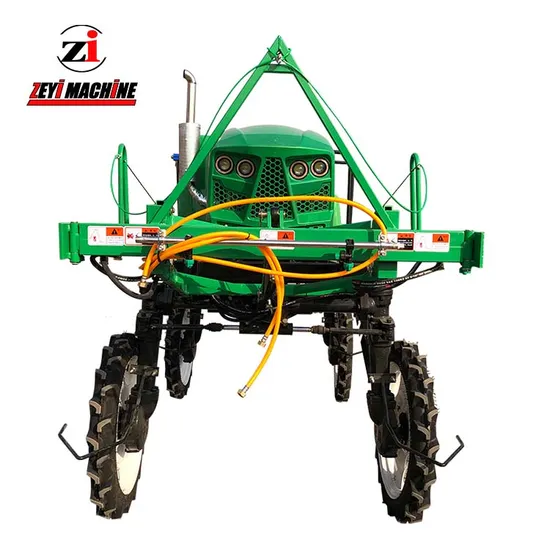

Self Propelled Type Diesel Engine Agriculture Boom Sprayer 3wpz-700

Product Description

Product Description

airframe size	full length(mm)	5350
		Full width(mm)	1870
		Full height(mm)	2370
		Wheelbase(mm)	2120
		Wheel distance(mm)	1500
		Effective ground clearance(mm)	1050
		Minimum ground clearance(mm)	870
		weight(kg)	1200
engine	appellation	Type 490
		Types	Vertical, four-cylinder, water-cooled, four-stroke, naturally aspirated
		Total exhaustL	2.24
		rated powerkwPS/rpm	38/2400
		Fuel tank capacityL	25
		Start way	Battery automatic
Walking department	Types of	4wsfour-wheel drive
		Operation method	Full hydraulic power steering
		Number of shift stages	3-step shift
		Walking speedkm/h	Mobile walking: 0-14 Spreading: 0-7
		BrakeFor parking brake	Pedal mechanical
		Tires	110/100/90 4PR
		battery	80B24R
medicine chest	Medicine box capacityL	700
		Way of stirring	Jet agitation
Spray pump	appellation	Gear pump
		Rotating speedrpm	600
		Water absorptionL/min	35-60
		Maximum pressureMPa	1.2
		Spraying pressureMPa	0.5-0.8
Prevent Device Division	Arm extension type	Double arm type, electric opening and closing, electric up and down
		Nozzle type	Conical nozzleMeasuring nozzle
		Nozzle number	Conical nozzle: 24
				Measuring nozzle2
		Effective spray rangem	15
		Nozzle height from the groundmm	500-1600

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Are you a factory or trading company? We are a factory with self-supported import and export right. Q2: How can I trust on your company? We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout s the pledge we to each customer. Q3: Where is your factory located? How can I visit there? Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us! Q4: How can I place an order from your website? It is very easy. Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers. Q5: How can I make the payment? Payment is made via Telegraphic Transfer (T/T) through the bank against the Performa invoice. 30% as prepayment and the balance when the goods are ready for shipping. Irrevocable L/C at sight could be also accepted. Q6: What's the Payment terms? FOB, the price of the implement without sea shipment costs. Q7: At which port do you usually ship the good? We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China. Q8. How about the Warranty ? 12 months warranty from the time of the goods arrive at destination.

---
