LGP400/80pl-E China Famous Brand Grout Mixing Plant

Product Description

LGP400/80PL-E China famous brand grout mixing plant Product Description

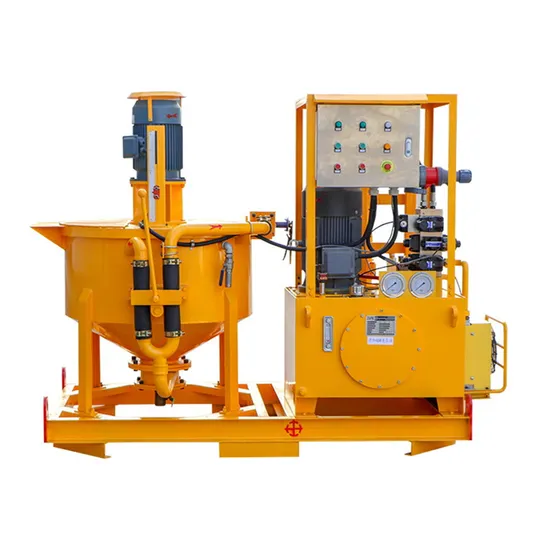

LGP400/80PL-E grout station is a combination of mixer and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the grout pump injects from the mixer drum. This ensures a continuous mixing and grouting operations. The grouting plant is driven by an electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.

Product Feature

Grouting pressure and displacement is adjustable. The function switch between mixer and grout pump is realized by using squeeze switch. The vertically plunger pump is a universal application for grouting. Easy to operate and maintain. Up to 5mm particle size.

Product Parameters
Technical data of grout plant:

Name		Data
Type		LGP400/80PL-E Grout station
Mixer	Volume(L)	400
	Speed(rpm)	1450
Grouting pump	Stroke (mm)	220
	Cylinder diameter (mm)	120
	Flow(L/min)	80	60
	Pressure(MPa)	2.4	5
	Power(KW)	15
Dimension	Dimension(mm)	2450×1200×1750
	Weight(KG)	980

Detailed Photos
Product Application
Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement, backfill, waterproof grouting.
Acted as a grouting plant in the Pipe Jacking Machine
Company Profile

FAQ
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.

---
