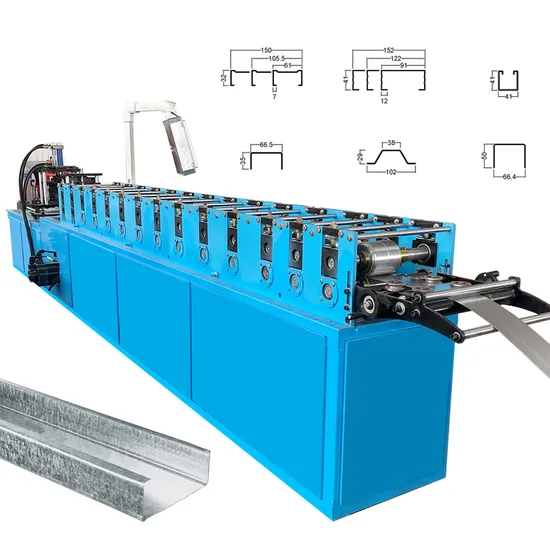

Metal Drywall Steel Stud Framing Making Machine C Channel Roll Forming Machine

Product Description

Product Description
Specification

Total power	1- 18kw
Speed	16 -18m/min
Dimension (LxWxH)	(8-17)×(1.2-1.6)x1.6m
Roller station	14- 20
Material thickness	1.O- 3.0mm (G30O-G550)
Material width	150- 450mm

Details

Entry and Feeding System

The machine typically includes an entry system that allows the metal strip to be loaded and fed into the roll forming section.
Roll Forming Stations
These are the heart of the machine, consisting of a series of rollers and dies arranged in a sequence. Each station performs a specific shaping operation on the metal strip. For hat channels, the stations will gradually bend the strip into the desired profile.
Control System
Modern roll forming machines are equipped with computerized control systems that allow operators to set various parameters, such as the dimensions of the hat channel, the speed of the process, and other factors.
Cutting Mechanism
After the metal strip has been formed into the hat channel shape, a cutting mechanism is often included to cut the channel into the desired lengths.

Packaging & Shipping

Company Profile

FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance

Q7: How about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order

---
