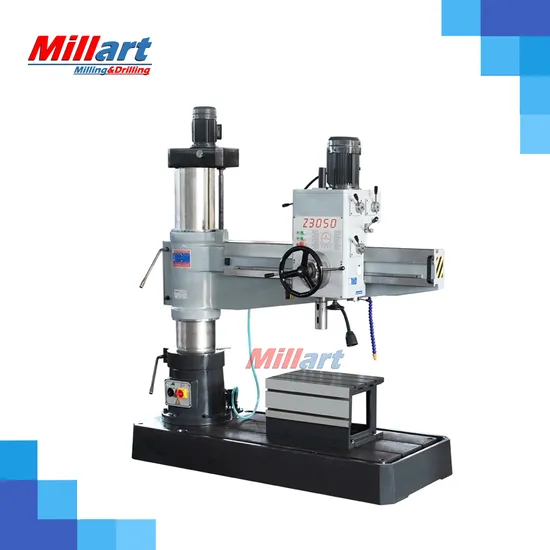

Big Size Manual Vertical Radial Drill Machine Z3050*16 Z3050*16A Radial Bench Drilling Machine for Metal

Product Description

Product Description
Technical parameter :
Feature :
The large weight and stiff construction of the drill ensures stability and vibration free operation
The cube table ensures easy adjustment and filling of the workpiece
Height adjustment of the arm by motor
Control panel located on the front of the drill for better performance and ergonomics
The polished surface of the column ensures easy, free and precise travel of the arm
Drill equipped with manual blocking of the head and arm of the column
The large speed range ensures precise and fast processing
Technical parameter :

Model	Z3050x16	Z3050x16A
Max. Drilling dia. (mm)	50	50
Distance from spindle nose to base (mm)	1150	1170
Distance between spindle axis and column face (mm)	360-1600	410-1600
Spindle travel (mm)	220	315
Spindle taper	MT5	MT5
Spindle speed range (rpm)	78-1100	49-1350
Spindle feeding range (rpm)	0.10-0.56	0.1---1.0
Rocker rotary angle(°)	360	360
Main motor power (kw)	4	4
Movement motor power (kw)	1.5	1.5
diameter of vertical column(mm)	280	280
Net weight (kg)	2000	2100
Overall dimension (mm)	2170*950*2450	2280 1000*2350

Sandard accessories:
Box type worktable
Drill chuck
Taper sleeve
Tools
Optional accessories:
Machine vice
Coolant system
Work lamp
Spindle guard Company information:
Packaging&Shapping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
