Advanced Vial Filling and Sealing System for Liquids and Powders

Product Description

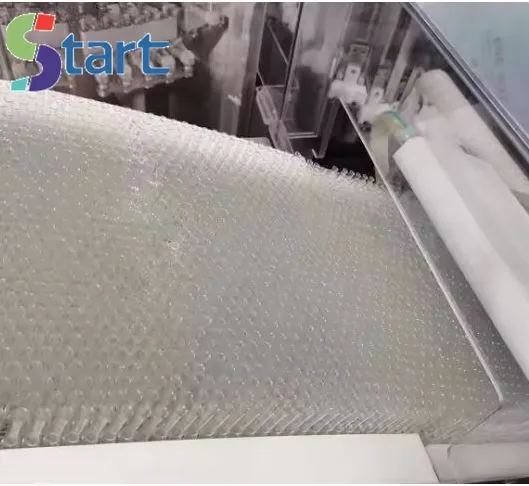

Product Description The Vial liquid filling line includes ultrasonic washing machine, RSM sterilizing drying machine, filling and stoppering machine, capping machine. This line can work together as well as independently. It completes the following functions of ultrasonic washing, drying& sterilizing, filling& stoppering, and capping.
Production Procedures: Vial Bottle→Ultrasonic Washing → 1st Water Flushing → 1st CA Blowing → 2nd Water Flushing →2nd CA Blowing→ WFI Flushing→ 3rd CA Blowing→ Drying & Sterilizing →Cooling →Front Nitrogen Charging →Filling →Rear Nitrogen Charging →Stoppering→ Capping→ Finished Products
Feature 1.The compact line realizes single linkage, continuous operation from washing, sterilizing & drying, filling & stoppering and capping. The whole production process realizes cleaning operation; protects products from contamination, meets the GMP production standard. 2.Full servo control.
3.Transparent self-lifting protective cover with humid air outlet, electric screw control, safe and easy to maintenance.
4.For customers' liquid medicine and filling accuracy requirements, the ceramic pump filling system is selected, which can effectively ensure the filling accuracy and can be flexibly switched.
5.The stoppering form of inserting while rotating can effectively ensure the stoppering effect.
6.Capping machine: No Vial - No Capping, No Stopper - No Capping, Vacuum absorb aluminum scrap device.

---
