Algorithm All in One Machine Computing Ai Gateway Ai Box Nvidia Jetson Orin Nano 4GB 34tops

Product Description

FC2106 is developed and designed based on NVIDIA Jetson Orin Nano core board. It is pre-installed with Ubuntu20.04 operating system, supports 4G/5G functions, is made of ultra-strong and light aluminum alloy material, has no fan structure to conduct passive heat dissipation, and has a variety of IO interfaces. The bottom bracket that is convenient for site installation is reserved, which can be applied to autonomous machines such as robots, unmanned delivery vehicles, low-altitude defense, intelligent inspection, and smart buildings. It is an ideal carrier for deploying AI computing power at the edge for deep learning.

4G/5G

POE network port

Low power consumption

Standard serial port

Product Parameters

Technical parameters
System	AI platform	Jetson Orin Nano
	AI computing power	Super mode: 34TOPS
	GPU	512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
	CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
	Video coding	1080p30 supported by 1-2 CPU cores
	Video decoding	1×4K60 (H.265) 2×4K30 (H.265) 5×1080p60 (H.265) 11×1080p30 (H.265)
	Memory	4GB 64-bit LPDDR5 34 GB/s
	Storage/expansion	(Supports external NVMe)

Hardware interface
Wired network	Interface	5× RJ45 RJ45 gigabit network port, Lan1 independent IP, Lan2-Lan4 shared IP and supporting POE (at standard)
Wireless network	WIFI	2.4GHz/5GHz dual-band WiFi (optional)
	5G/4G	4G Full Netcom /5G Full Netcom (optional)
	GNSS	Support multi-mode (BD, GPS), meter/centimeter/RTK/inertial navigation (optional) (RTK antenna is required with RTK function)
	Other	1 × SIM card
Multi-media	Display	1×HDMI
	Audio	/
I/O	USB	4×USB3.0 Type-A, 1×USB2.0 Micro OTG
	Serial port	1×RS232, 1×RS232/RS485
	CAN	1×CAN, 1×SPI-CAN (optional)
	Multi-functional interface	4× GPIO (3.3V@1mA) 1×I2C (3.3V)
Interface	M.2 KEY E	/
	M.2 KEY M	1×2280 PCIE SSD
Other	RTC	1×RTC
	Synchronous system	/
	GMSL camera interface	/
Other	Power input	12-24V, support backup power supply (optional)
	Power interface	MX3.0 terminal
	Keys/indicators	Two buttons and two indicator lights for Recover/Rest
Physical parameters	Specifications/dimensions	165mm × 163.3mm × 53mm
Environment	Operating temperature	-20ºC to 60ºC
	Operating humidity	5% to 95%, no condensation
	Heat dissipation mode	Passive heat dissipation

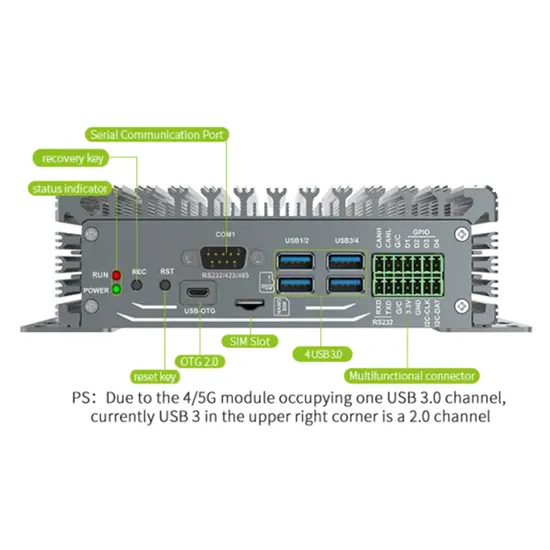

Detailed Photos
Shipping list

Power adapter (19V-3.42A)	1	Standard
Micro USB data cable	1	Standard
Double-row 6PIN power adapter cord	1	Standard
2*7P green Phoenix terminal	1	Standard
National standard power cord	1	Standard
Wall mount	2	Standard
4G antenna	2	Optional
WiFi antenna	2	Optional
5G antenna	4	Optional

FAQ 1. Are you factory or trading company?
We are factory with over 20 R & D engineers, our price is very competitive, after-sales service is guaranteed.

2. Do you provide OEM/ODM service?
Yes, OEM/ODM service is available.

3. What payment method do you accept?
T/T, Paypal, L/C, etc.

4. What is your lead time?
1 day for edge computing development kit, 3 days for edge computing box, 30 days for customization service.

5. What is the warranty?
2 years. We have a professional team dealing with after-sales issues.

---
