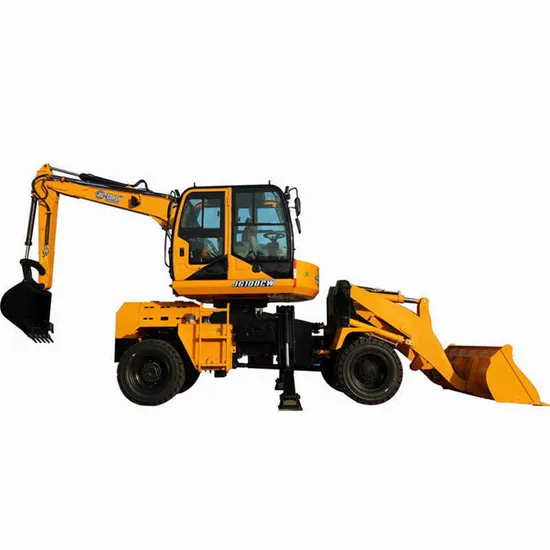

Sales Surge Backhoe Excavator Architectural Engineering Backhoe Claw Bucket Both Ends Wheel Loader

Product Description

Our company abides by the business philosophy of "quality first, customer first" to ensure product quality.
We have rigorous production procedures, and each production process is carried out under strict quality inspection.
Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat,
clean and safe working environment.
We are Quanzhou Jingli Engineering And Machinery Co., Ltd.,one of the professional excavator manufacturers in China,
with 20 years of excavator manufacturing experience.Our company mainly produces wheeld excavator, crawler excavator,
grapple excavator, material handler, forklift,railway machine, sugarcane combine harvester and so on.
Equipped with 62.5KW turbocharged engine, this type of grapple wheel excavator shows excellent performance in
slope climbing, materials loading and so forth. By utilizing a plunger pump, this agricultural excavator enjoys smooth
movement and high working efficiency.
The 360° rotary grab makes our wheeled excavator popular with farmers for loading sugarcanes and timbers.
We provide more optional parts to complete more kinds of work.

SPECIFICATIONS OF JG95Z GRAPPLE EXCAVATOR
RANGE OF OPERATION			Boom length				4000mm
			Arm length				2000mm
			Max radius of capture				7000~7500mm
			Max. Opening Width of Grab				1250mm
			Min. Opening Width of Grab				80mm
			Max. Radius Grabing Weight				800kg
			Grapple rotation angle				360°
			Max dumping height				4650~5500mm
			Back-end radius of gyration				1980mm
DIMENSION			(Length*width*height)Transport Dimensions				6600*2350*2950mm
			Wheel base				2400mm
			Track(Front/rear)				1850mm/1750mm
			Drive axle				Reinforced integral 10Ton Axle
			Ground clearance of counterweight				1160mm
			Min ground clearance				200mm
TECHNICAL PARAMETERS			Angle of rotation				360°
			Machine weight				7800kg
			Engine model				YUCHAI
			Rated Power				65kw
			Rated Speed				2400r/min
			Hydraulic system working pressure				21Mpa
			Hydraulic system flow				150L/min
			Variable piston pump				71ml/r
			Max Hauling force				12r/min
			Walking speed				25km/h
			Grade Climbing ability				58%/30°
			Tyre model				8.25-16
			Revolution Overdrive Pressure				20Mpa
			Full circle swinging time				5.5s
			Fqt Fuel Quantity				≥6L/h
			Hydraulic Tank Capacity				110L
			Capacity Of The Fuel Tank				110L

Our company mainly produces wheeld excavator, crawler excavator, grapple excavator, material handler, railway machine,
sugarcane combine harvester.

---
