Product Description
Product Description

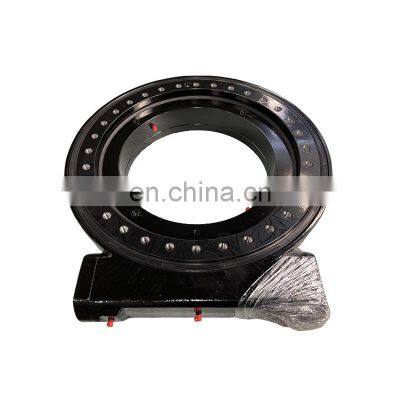

CODE INTRODUCTIONPRODUCT CODE INTRODUCTIONCode explanation: SISE / WEA XX XX(S) 2H CE) B/12R CL) XXX(E) XXX KKS/SE/WEA -S open type rotary drive, SE fence type rotary drive, WEA fence type heavy duty rotary drive.Xx – Product dimensions, such as: 3″, 5″, 7″, 9″, 12″, 13″, 17″, 21″, 25″ indicates the approximate center distance of the slewing bearing raceway.XX CS) – XX reduction ratio. The slewing bearing teeth are not broken, no – indicating that the slewing bearing teeth are broken.2H-2 indicates double worm drive, none of which means single worm drive;H means that the non-input end of the worm is not boring cover, and no – means that the non-input end of the worm is a stuffy cover.Main FeaturesSlewing bearing,slewing ring bearing As technology has improved, more slewing drives are using hourglass worm technology, in which the worm is shaped to engage more teeth in the gearThis increased tooth engagement results in greater strength, efficiency and durability.The slewing drive uses standard worm technology in which the worm on the horizontal The speed ratio of the shaft depends on the relationship between the number of threads on the worm and the number of teeth in the worm gear or gear.The specifications of the drive and gear depend on the material of the gear. However, most of the drives and gears typically used consist of steel and phosphor bronze. According to a wide range of tests,chilled nickel-phosphorus bronze ranks first in terms of Wear resistance and deformability. The second place on the list is SAE No. 65 bronze. For bronze gears, good castings should have the following minimum physical properties:Physical characteristicsUltimate strength yield point30,000 lbs / psi 12,000 lbs / psiDIMENSIONSAPPLICATION:There are many applications where a rotary drive can be used, primary because it is well suited for applications that require load to maintain power and rotational torque.Typical swing drive applications include, but are not limited to:Solar trackerWind TurbinesMen's liftHydraulic machineryTelehandlerExcavator derrickLiftCraneDrilling equipmentMilitary equipmentPainted: AvailableWe HGB can paint the slewing drive according to customer's requirement.Below are products for our foreign customer:FAQ1.Q: Are you trading company or manufacturer?A: We are professional slewing bearing manufacturer with 20 years' experience.2.Q: How long is your delivery time?A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not in stock, Also it is according to quantity.3.Q: Do you provide samples ? is it free or extra?A: Yes, we could offer the sample, it is extra.4.Q: What is your terms of payment?A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance, balance before shipment.5.Q: Can you provide special customization according to the working conditions?A: Sure, we can design and produce the slewing bearings for different working conditions.6.Q: How about your guarantee? A: We provide lifelong after-sales technical service. CONTACT USRELATED PRODUCTS
>>
