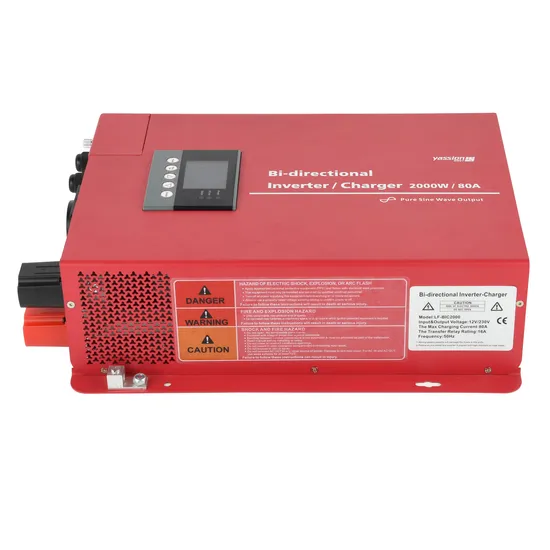

Product Description The Sinewave Inverter-Charger includes the items listed below.
Inverter-Charger base unit Owner's manual Detailed Photos
| SPECIFICATIONS | 12V model | 24V model | 48V model | 12V model | 24V model | 48V model |
| 120V model | 230V model |
| Inverter |
| Continuous AC Output Power | 2000W |
| AC Output Current | 16.7A max | 8.7A max |
| AC Surge Power (Peak) | 4000W |
| AC Output Voltage/Frequency | 110-130 VAC / 60 Hz | | 220-240 VAC / 50 Hz |
| AC Output Waveform(THD) | 5% max ,2.5% typical |
| Nominal DC Input Voltage | 12.5 VDC | 25 VDC | 50 VDC | 12.5 VDC | 25 VDC | 50 VDC |
| DC Input Voltage operating range | 10.5 - 16.0 VDC | 21 - 32 VDC | 42 - 63 VDC | 10.5 - 16.0 VDC | 21 - 32 VDC | 42 - 63 VDC |
| Efficiency | 90% typical | 94% typical | 90% typical | 94% typical |
| AC Transfer Switch |
| Nominal AC transfer time - utility to inverter | <30ms (delayed as required by voltage decay of active load) |
| Nominal AC transfer time - inverter to utility | <20ms |
| Transfer Relay Rating | 30A | 16A |
| AC Input Source Setting | 15, 20, 30A | 10, 13, 16A |
| AC Output Port 1 (AC Socket) | GFCI(20A) | EU: CEE 7/4 (16A) |
| UK: BS1363 (13A) |
| AU: AS/NZS 3112 (10A) |
| AC Output Port 2 (Hard Wire Connector) | 30A max | 16A max |
| Display |
| Display Panel Port | RJ12 |
| Inverter Mode | Input Voltage, Output Power,Output Voltage |
| Charger Mode | Status & Battery voltage,Input Power,Current |
| CANBUS Control | By CANBUS |
| Remote Panel | By Remote |
| Charger |
| Charger input operating range (full power) | 95-135Vac (105-130Vac) | 190-270 Vac (210-260Vac) |
| Charging Voltage Range | 13.5 - 14.8 VDC | 27-29.6V | 54-59.2V | 13.5 - 14.8 VDC | 27-29.6V | 54-59.2V |
| Charger Current (max) | 80A | 40A | 30A | 80A | 40A | 30A |
| Charger Current Setting | 10-80A | 5-40A | 5-30A | 10-80A | 5-40A | 5-30A |
| Battery Type | Gel, Flooded, AGM, Lithium, use, Power Supply |
| Charge Control | Bulk / Absorption / Float / Recharge |
| Maintenance Recharge Cycle | 7 days |
| Efficiency | 90% typical | 93% typical | 91% typical | 93% typical |
| Safety and Environmental |
| Approval | cETLus | CE |
| Safety | UL 458, CSA C22.2 No.
107.2-01 | EN 60204-1 & IEC 61558-2-16 |
| EMC | FCC Part 15 Class B | EN 62040-2 Category C2 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 5-90% noncondensing |
| Operating Altitude | Up to 9,843ft (3000m) above sea level |
| Weights and Dimensions |
| Weights | 5.9kg |
|
| Dimensions L X W X H | 387.9mm X 287mm X 110mm |
