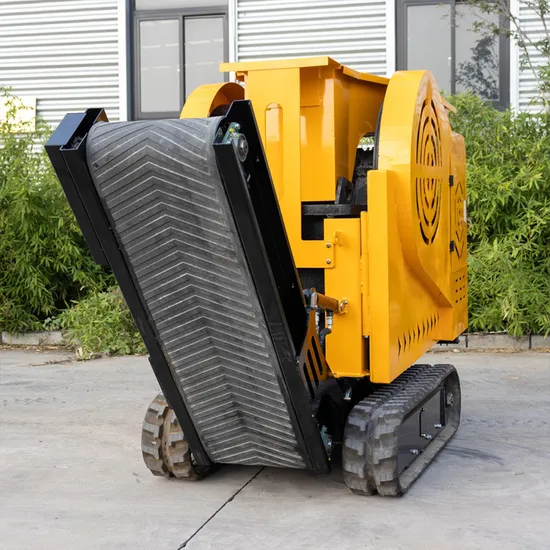

with Telematics Advanced Stone Crusher

Product Description

-Stone Crusher-
A stone crusher is a crucial piece of equipment in the mining, construction, and recycling industries. It is primarily used to reduce large rocks and stones into smaller pieces or even fine aggregates. Here is a brief introduction:
Types
• Jaw Crusher: It uses compressive force to break stones. The movable jaw compresses the material against the fixed jaw, crushing it into smaller sizes. Ideal for primary crushing.
• Cone Crusher: Operates by squeezing the material between a mantle and a bowl liner. It is commonly used for secondary and tertiary crushing, producing more uniformly sized particles.
• Impact Crusher: Breaks stones by impacting them with a high-speed rotor. It can produce a more cubical shape of crushed materials, suitable for applications where shape matters.
• Roller Crusher: Consists of two or more rollers that rotate towards each other. The stones are crushed as they pass through the gap between the rollers, often used for fine crushing.
Applications
• Construction Industry: It is used to produce aggregates for concrete, asphalt, and road base materials.
• Mining Industry: Helps in processing ores and separating valuable minerals from the rock.
• Recycling Industry: Can crush concrete and asphalt waste, making it possible to reuse the materials in new construction projects.
Advantages
• High Efficiency: Stone crushers can process large volumes of materials in a short time, improving production efficiency.
• Versatility: They can handle various types of rocks and stones, adapting to different project requirements.
• Cost-effective: By reducing the need for manual labor and increasing productivity, they save costs in the long run.
Detailed Photos

Working Size(mm)	3200*1000*1620
Vertical plate inner width (mm)	380
Shipping size (mm)	2100*1000*1750
Total outer width of cover	960
Tracktype(mm)	180*72*41
Weight wheel diameter (mm)	126
Number of wheels (groups)	6
Feed port size (mm)	220*350

Maximum feed size (mm)	200
Bunker volume (m3)	0.25
Stacking height (mm)	700-1150
Feed conveyor (mm)	1500*500
Gravel range (mm)	15-50
Travel speed (km/h):	0-3
Track specifications	rubber track
Production capacity (T/h tons/hour) :	2T-5T/h

Our Advantages
