Biomass Recycling Mchinery Drum Wood Chipper Horizontal Grinder

Product Description

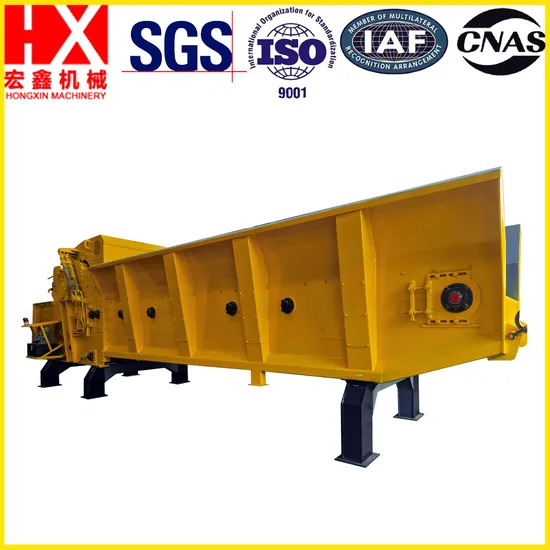

Product Description HX horizontal grinder is a dedicated equipment for biomass power plant for fuel reserve and MDF plant. Raw materials mainly consist of all kinds of trees, undersized log, timber felling residues (such as branch, twig, etc.), wood pallet, wood building template, and wood processing residues ( such as slab, batten, log core, building templates, etc.) and non-wood raw materials (such as waste of flax, reed, bamboo ,maize straw, cotton stalk, etc.).
Product Structure
The wood chipper is mainly composed of chassis, dead knife base, dead knife, chipping rod, rotor, main shaft, hammer or blade, upper feeding mechanism, below feeding mechanism, feeding device, discharge device, hydraulic system and electric control system. Product Features 1) Rotor rotation speed adjustable. According to the customer's specific requirements, the machine can be modified, such as adjusting the corresponding parts to change the rotation speed of the rotor, to meet the different requirements of customers on discharging granularity and production capacity.
2) Unique dead knife design. Thanks to the decades of experience, we create a special shock absorbing buffering dead knife design and already got the patent. This design protects the rotor, decreased the maintenance cost and extends the life span of the machine.
3) Forced auto feeding system. Start the oil pump, oil cylinder piston extend-retract, swing device rises or falls, then the upper feed roller adapt to the nature of feedstock automatically. This function enables the machine can adapt to wide range raw material and the feed process is more smooth. We got the patent for it.
4) Easy maintenance. Thanks to the hydraulic system, it is easy and convenient to open the machine cover to check or replace the cutter, screen mesh and so on.
5) Chain conveyor. The feeding chain conveyor is made of high manganese steel with the thickness 10mm, which is a typical anti-wear steel, cast organization is austenite and carbide. Via the water toughening treatment, the surface would be rapidly hardening and that make its internal remains the good toughness and deformability under the condition of strong impact and extrusion and the hardening layer with good wear resistance. These characteristics determine that the service life can be up to 22000 hours, which is better than the traditional belt's 2000 hours. In addition, the traditional belt' s with small friction coefficient which will cause the feed speed to be slow and not smooth, but the chain type solved all the above questions.
6) Perfect chain conveyor length. The length of the chain conveyor is matched with the machine running, which can achieve the best machine performance.
7) Dual control, One is fixed electrical cabinet and the other is remote control, that makes the operation more safe and convenient. 8) Automatically frequency conversion contorl for feeding system. Feed roller and chain conveyor can be adjusted automatically by the frequency conversion that makes the operation is safe and simple. According to the specification and quantity of raw materials, the feeding speed can be adjusted automatically to save energy and promote efficiency. It can adjust feed speed automatically according to the load of main motor to avoid idle running of machine.
9) Overload protection.The main motor starts by a soft start switch, and the circuit has an overload protection device, which automatically cuts off the circuit when overloaded.
10) Interlocking control of feed system and avoid feeding plugging. During normal operation, feeding motors and chain conveyor motor work simultaneously. Once there is a plugging, feed system stop feeding, two feeding motors and chain conveyor reverse together. 11) Pulley secured by inner hole locking device. Easy to assemble and disassemble. No the traditional violent assemble and disassemble. Protect the main motor. This makes easy to maintain the main and prolong the life span of the main motor.
Product Parameters

Model	HX1400-800	HX1600-600	HX1600-800	HX2000-1000
Rotor diameter (mm)	1100	800	1100	1400
Cutter quantity (piece)	8 or 28	8 or 30	8 or 36	6 or 42
Input size (mm)	1400-800	1600-600	1600-800	2000-1000
Rotor rotation speed (rpm)	900	760	900	432
Max material diameter (mm)	400	300	400	500
Production capacity (tph)	25-30	25-30	35-40	50-70
Main motor power (kw)	250	250	315	400
Chain feed conveyor length (m)	6	6	6	8
Discharge conveyor length(m)	10	10	10	10
Weight (t)	26	23	27	52
Dimension (m)	10x2.62x3.4m	10.5x2.64x3	11.03x2.85x3.4	13.8x3.28x3.9

Model	HX1260-500	HX1400-500
Rotor diameter (mm)	800	800
Cutter quantity (piece)	8 or 24	8 or 28
Input size (mm)	1250-500	1400-500
Rotor rotation speed (rpm)	650	760
Max material diameter (mm)	300	300
Production capacity (tph)	12-15	15-20
Main motor power (kw)	160	200
Chain feed conveyor length (m)	5	5
Discharge conveyor length(m)	10	10
Weight (t)	14	16
Dimension (m)	8.1 x 2.2 x 2.6	8.5 x 2.5 x 2.7

Packaging & Shipping Company Profile Our company is a professional manufacturer of log debarker, wood chipper, horizontal grinder, tub grinder, hammer mill and wood pellet mill.
Our company has introduced a series of advanced equipment including CNC Lathe, CNC Milling machine, Planer, Drilling machine, Sawing machine, CNC Boring machine, Balancing machine, Coiling machine. Meanwhile, we have obtained ISO 9001, CE certificates and many patents.
With a complete understanding of the requirements of both our customer and the industry, we offer defect-free equipment and services.
