US$38,000.00-90,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
AF65-1000, AF65-1200, AF65-1500, AF80-2300
Plastic Processed
POM, Nylon, Peek, PP, HDPE, ABS
Product Type
Plastic Extrusion Machine
Assembly Structure
Integral Type Extruder
Engagement System
Intermeshing
Screw Channel Structure
Special
Computerized
Non-Computerized
Screw Diameter
65mm, 80mm
Hopper Dryer and Autofeeder
1 Set
Hot Annealing Unit
One Set
Transport Package
Seaworthy
Specification
up to client′s requirement
Production Capacity
POM 20-30kg/Hr;
Product Description
POM THICK BOARD MACHINE
POM thick board machine consists of one single screw extruder, one extrusion mould, hot annealing device, cooling stand and one cutter.
Some clients maybe asks for a protective film lamination unit.
It has been over 20 years since we made first POM board machines.
| NO. | ADVANTAGES |
| 1 | Very stable and high effective; |
| 2 | power consumption less; suitable motor, suitable gear box ratio |
| 3 | turn-key service |
| 4. | durable, machine can run a long time. |
| 5 | suitable width: 500-260mm, thickness range: 10-300mm |
| 6 | wide application: sutiable material: ABS, PP HDPE |
| Specification list (for your reference |
Hopper dryer and autoloader: one set
ะค65extruder: one set
Screw diameter: 28:1
Screw style: special (Suitable for HDPE, PP)
gearbox: one set
Control Power: 22kw
Control style: frequency conversion
Thermostat zones: 11 zones( five zones for mould)
Electric control box: one set
Extruding mould 1.0m wide board: one set
Cooling style: front part heating, backward part of mould cooled by water
Finish width: 1.00 meter; Suitable thickness range: 20-80mm
Thickness calibration plates: 1 SETS:
Thickness:20mm
Cooling stand: one set
Automatic Saw cutter: one set
Motor power: 3.7KW
Water pump: 0.45KW
Stack stable: one set
Remarks: The inverter of this line is of ABB; temperature controllers are of Japanese Omron brand; motors are of Chinese name brand and the solid contactors are of S chneider. The screw and the barrels are all made of high quality nitrided steel-38CrMoAIA,and are nitration austerely according to NATIONAL STANDARD, nitration hardness: screw>=740HV;barrels>=940HV. Nitration depth: screw:0.4-0.6mm,barrel:0.6-0.7mm,fragility is 2 grades The gear box materials is made of alloy cast steel, contract surface of up, down box deal with precision tempering, quenching heat treatment, the teeth deal with grinding and peeling eventually, the teeth surface harshness is Ra 0.8, and provided with damping, antifriction, low-noise etc. characteristics. |
MACHINE PICTURES:

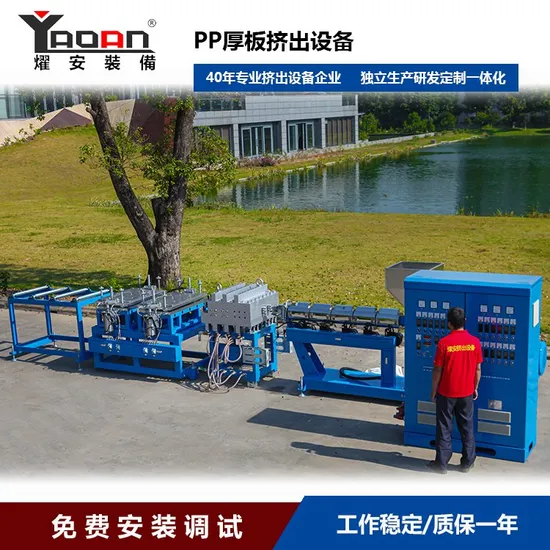

pom thick board machine
PP PE ABS THICK BOARD MACHINE
A VIEW OF CLIENT'S STOCK
OUR FACTORY
MY CONTACT INFORMATION: Dave Woo
(G.Manager of foreign trade department.)
YAOAN PLASTIC MACHINERY CO.,LTD
No.10, zone 1, FUMIN industry zone, Dalang town, Dongguan city
523790 China
>>
