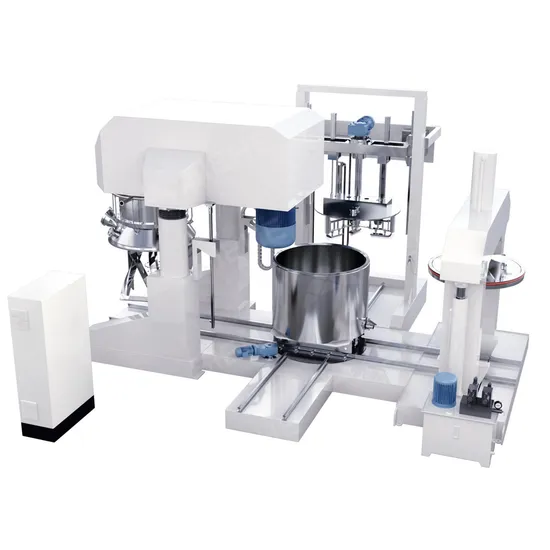

Siehe Cyanoacrylate Glue Production Line Adhesive Production Line with Track

Product Description

Product Description The main equipment of Adhesive Production Line:
Mixing equipment, Extrusion equipment, Packaging equipment
Mixing Equipment: For middle and low viscosity products, often use dual-shaft or tri-shaft multi-function dispersing mixer; for high viscosity products, usually choose Double Planetary Mixer; Whichever product , there are mixing, dispersing, scraper etc. functions. The machine is closed design, which can be evacuated, and with the heating and cooling system to achieve constant temperature stirring.
Extrusion equipment: Including fixed barrel type and lifting with barrel type, commonly used at the back of mixing machine and front of the packaging equipment, extruding material from the barrel by the strong extrusion pressure and match with the barrel seal structure; can customize vacuum extrusion machine.
Dispensing Equipment: can be divided into semi-auto type and fully automatic type, can be customized according to the filling specifications and the form of filling container. Track design reduces space. Control the position of the cylinder through remote control, which is convenient and efficient.

Batch Capacity	500-3,000 KG
System Capacity	300-10,000 T/year
Application Materials	* Single-component adhesives and two-components adhesives: * Polyurethane adhesives, epoxy adhesives, rubber adhesives, etc. * PU sealants, silicone sealants, electronic sealants, acrylic sealant, structural adhesive, white glue, etc. * Dental sealants and materials;
Mixing Equipment	Various slurries with viscosity less than 1,000,000cps, solid content under 90% such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, jam etc.
Mixing Equipment	SXJB series: Powerful Planetary Dispersing Mixer SJBD series: Dual shaft Multi-functional Dispersing Mixer, Triple shaft Multi-functional Dispersing Mixer
Heating Method	Water Heating, Oil Heating, Steam Heating
Vacuum Type	Rotary Vane Vacuum PumpWater Ring Vacuum Pump (vacuum drying)
Discharge System	Fixed type (Discharge from top of pressing plate)Tank lifting type (Discharge from the tank bottom outlet) Note: protection grid/door optional
Filling Method	Semi-auto Filling Machine, Auto Filling Machine, suitable for filling 300ml cartridge;Filling pails (1kg, 25kg, 200kgs ect.)
Characteristics	Various types of blades can be selected according to the viscosity and characteristics of materials;Tank automatic moving on the track; Automatic raw materials batching and feeding; High automation degree.

Product Parameters
Auxiliary Machines
Mixing machines available Dual shaft mixer Three shaft mixer Double planetary mixer
Materials discharging and tank cleaning machine Extrusion machine for materials discharging Container cleaning machine

Finished product filling machines Sausages semi auto filling machine Cartridges semi auto filling machine Cartridges full auto filling machine
Other related machines used Vacuum and condenser system Oil heating machine Water cooling machine Detailed Photos
Industrial Applications

Company Profile

FAQ 1,Payment terms?
A1L/C, T/T, D/P,cash, trade assurance;
2,Trade terms?
A2 In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP CIF and DDU;
3,Validity of quotation?
A3 Within 30 days;
4,Modes of shipment?
A4 By sea, by railway, by air and by express;
5,Warranty?
A5 One year and lifelong service provided at cost;
6,Installation & Commissioning & Training?
A6 For single set of machine, usu. tel or mail guidance for installation;For production line, paid overseas engineering service provided to customers'factory for installation and debugging, as well as training the worker to use the production line.

---
