This model is equipped with energy-saving and efficient turbocharged exhaust engine, and the National III emission standard, maximize the power of the engine and reduce power loss.
The multi-way valve imported from South Korea has advanced and reliable hydraulic system. The whole car body uses high-quality steel, which is firm, reliable and more durable.

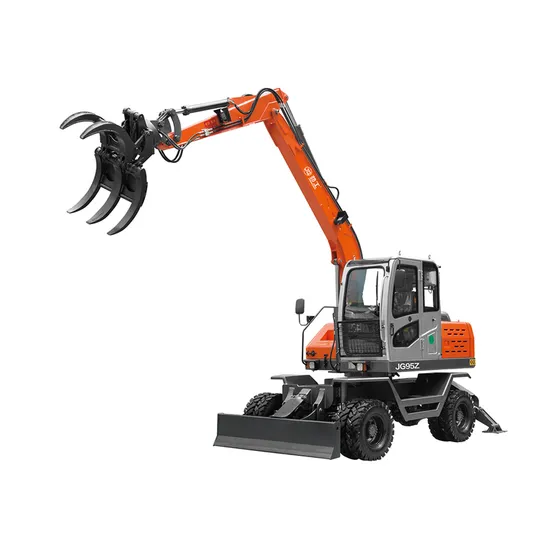

| SPECIFICATIONS OF JG95Z GRAPPLE EXCAVATOR |
| RANGE OF OPERATION | Boom length | 3680mm |
| Arm length | 1850mm |
| Max radius of capture | 7000mm |
| Max. Opening Width of Grab | 1250mm |
| Min. Opening Width of Grab | 80mm |
| Max. RADIUS Grabing Weight | 800kg |
| Grapple rotation angle | 360° |
| Steel Wire Rope Tension | 25KN-35KN |
| Rope Diameter | ø8mm~ø10mm |
| Rope capacity | 50m~100m |
| Max dumping height | 4650mm |
| Back-end radius of gyration | 1980mm |
| DIMENSION | (Length*width*height)Transport Dimensions | 6450*2330*2930mm |
| Wheel base | 2400mm |
| Track(Front/rear) | 1850mm/1750mm |
| Drive axle | Reinforced integral 10Ton Axle |
| Ground clearance of counterweight | 1160mm |
| Min ground clearance | 200mm |
| TECHNICAL PARAMETERS | Angle of rotation | 360° |
| Machine weight | 7800kg |
| Engine model | YN38GBZ/4102(turbocharged) |
| Rated Power | 65kw |
| Rated Speed | 2400r/min |
| Hydraulic system working pressure | 21Mpa |
| Hydraulic system flow | 150L/min |
| Variable piston pump | 71ml/r |
| Max Hauling force | 12r/min |
| Walking speed | 25km/h |
| Grade Climbing ability | 58%/30° |
| Tyre model | 8.25-16 |
| Revolution Overdrive Pressure | 20Mpa |
| Full circle swinging time | 5.5s |
| Fqt Fuel Quantity | ≥6L/h |
| Hydraulic Tank Capacity | 110L |
| Capacity Of The Fuel Tank | 110L |
