Product Details
Product Description
Product Description

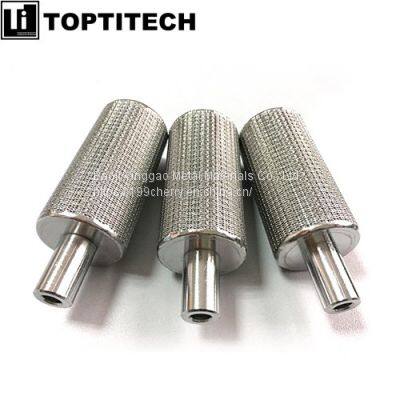

Five-layer sintered stainless steel mesh is a specialized material composed of five layers of stainless steel wire mesh with varying openings and diameters that are sintered together in a vacuum environment. This process enhances the characteristics of stainless steel woven wire mesh, resulting in an integrated porous material with improved mechanical strength, high permeability, and enhanced structural integrity. The sintering process bonds the contact points of different wire meshes together to create molecular diffusion-welds at every intersection of the wire mesh, which in turn enhances the temperature and pressure resistance of the sintered mesh. Additionally, the mechanical strength of the coarser support layers is provided while maintaining the filtration rating of the finest mesh layer.
Specifications
Materials: Stainless steel 316 L, stainless steel 304, 304L, and other materials available upon request.
Filtration accuracy: 1 micron to 300 microns.
Heat resistance: Up to 600°C.
Standard thickness: 1.7 mm.
Standard sizes: 480 mm × 480 mm, 500 mm × 1000 mm, 600 mm × 1200 mm, 610 mm × 1250 mm, 1000 mm × 1000 mm, and 1200 mm × 1200 mm. Other sizes can be designed according to customers' requirements.
Maximum size: 1219 mm × 1219 mm.
Type classification: Sintered Dutch woven wire mesh and sintered square woven wire mesh.
Features
High porosity: Sintered 5 layers stainless steel wire mesh has a high porosity, allowing for efficient fluid flow and effective filtration of particulate matter.
High durability: The sintering process creates a strong, uniform structure that is highly resistant to corrosion and can withstand extreme temperatures and pressures.
High temperature resistance: Sintered 5 layers stainless steel wire mesh can withstand temperatures up to 1000°C, making it suitable for use in high-temperature applications.
Excellent filtration performance: The multiple layers of stainless steel wire mesh provide excellent filtration performance, removing particulate matter from fluids with high efficiency.
Applications
Chemical industry: Sintered 5 layers stainless steel wire mesh is used in the chemical industry for filtration of corrosive fluids, such as acids, alkalis, and solvents. It is also used for catalyst recovery and gas filtration.
Pharmaceutical industry: Sintered 5 layers stainless steel wire mesh is used in the pharmaceutical industry for filtration of liquids and gases, as well as for sterilization of equipment and packaging materials.
Food and beverage industry: Sintered 5 layers stainless steel wire mesh is used in the food and beverage industry for filtration of liquids and gases, as well as for sterilization of equipment and packaging materials.
Oil and gas industry: Sintered 5 layers stainless steel wire mesh is used in the oil and gas industry for filtration of drilling fluids, produced water, and other fluids.
Water treatment industry: Sintered 5 layers stainless steel wire mesh is used in the water treatment industry for filtration of drinking water, wastewater, and other liquids.
>>
