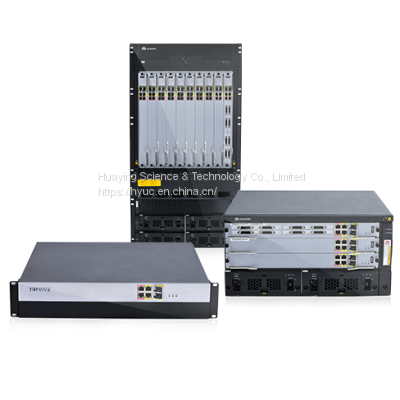

VP9600 Series Universal Transcoding MCUsHuawei VP9600 Series are the cutting-edge MCUs with high-capacity, high cost-effectiveness, flexible ports utilization and high scalability. They are the industry-leading MCUs supporting up to 4k universal transcoding. Interoperability with various types of endpoints intelligently, VP9600 Series deliver users an ultimate videoconferencing experience.
| Specifications | VP9630 | VP9650 | VP9660 |
| Video Port Capacity | Flexible ports:
Up to 4 H.265 4K ports in CP
or 16 H.264 1080p60 ports in CP
or 32 H.264 1080p30 ports in CP
or 64 H.264 720p30 ports in CPVOIP ports:
Quantity same as that of 1080p30 ports | Flexible ports
Up to 12 H.265 4K ports in CP
or 48 H.264 1080p60 ports in CP
or 96 H.264 1080p30 ports in CP
or 192 H.264 720p30 ports in CPVOIP ports:
Quantity same as that of 1080p30 ports | Flexible ports:
Up to 32 H.265 4K ports in CP
or 128 H.264 1080p60 ports in CP
or 256 H.264 1080p30 ports in CP
or 512 H.264 720p30 ports in CPVOIP ports
Quantity same as that of 1080p30 ports |
| VoIP Access Capacity | Quantity = 1080p30 ports | Quantity = 1080p30 ports | Quantity = 1080p30 ports |
| RSE-M Board Capacity | None | Up to 30-way 1080p60 recordings
Up to 10-way 720p live broadcasts
Up to 2,000 viewers @ 256 kbit/s
2 TB capacity (1 TB+1 TB hot backup) | Up to 30-way 1080p60 recordings
Up to 10-way 720p live broadcasts
Up to 2,000 viewers @ 256 kbit/s
2 TB capacity (1 TB+1 TB hot backup) |
| Hot Spares | MCU, power, network port, and chipset | MCU, power, media board, network port, and chipset | MCU, power, control board, media board, network port, and chipset |
| Standards and Protocols | H.323, SIP | H.323, SIP | H.323, SIP |
| Video Features | Video resolution: QCIF, CIF, 4CIF, 288p, 360p, 720p, 1080p, 4K
Presentation resolution supports up to 4K(3840x2160)，presentation sharing not occupying any MCU ports
|
| Audio Features | AAC-LD, AAC-LC, Three-channel Stereo, G.722.1*, G.722.1C*, G.711, G.722, G.728, G.729A, G.729AB, G.719, and iLBC (*: licensed from Polycom®)
Three-channel Stereo
|
| Conferencing Features | Universal transcoding for telepresence
Up to five-level multi-channel cascading
Continuous presence per port
Auto continuous presence
Flexible ports
24 panes in continuous presence and 48 continuous presence layouts
Ad hoc and video IVR
Huawei SiteCallTM
Email notification
URI dialing
|
