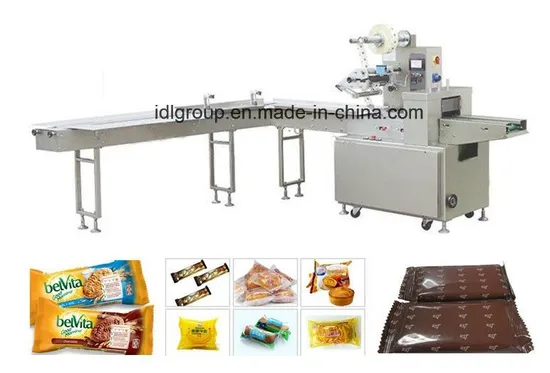

Full Automatic Food Flow Pack Machine with Arranging Conveyor & Feeding System

Product Description

Horizontal flow pack machine/ flow packing machine
1. Description:
Features: 1.The machine controlled by PLC, hence steady in performance and easy to operate.
2.Touch screen Interface, set and save the parameter easy and quick.
3.Main motor equipped with high quality dual frequency inverter.
4.High accuracy photoelectric tracking system with automatic compensation.
5.The conveying chain can be adjusted without stopping machine.
6.The machine can be equipped with nitrogen filling device and date printer.
Optional devices:
1:Date coder
2:Alternative sealing patterns and notch
3:Full Stainless
4:Touchable Screen
5: Filled with air device
6: Release the air and punching
2. Technical Specifications:

Type	IDL-P250	IDL-P320	IDL-P350	IDL-P400	IDL-P450	IDL-P600
Film width	Max.250MM	Max.320MM	Max.350MM	Max.400MM	Max.450MM	Max.600MM
Bag Length	65-280MM	65-330MM	65-330MM	150-400MM	150-450MM	160-500MM
Bag width	30-110mm	50-150mm	50-160mm	50-180mm	50-180mm	50-280mm
Products height	max.55mm	max.55mm	max.60mm	max.65mm	max.75mm	max.110mm
Packing speed	40-330bag/min	40-230bag/min	40-180bag/min	30-150bag/min	30-150bag/min	20-150bag/min
Power	220V 50/60HZ 2.4KW	220V 50/60HZ 2.6KW	220V 50/60HZ 2.6KW	220V 50/60HZ 2.8KW	220V 50/60HZ 2.8KW	220V 50/60HZ 2.8KW
Machine Size(mm)	3770x680x1420	3770x720x1420	4020x770x1420	4020x770x1420	4020x820x1420	4020x970x1500
Machine Weight	500kg	550kg	580kg	600kg	650kg	680kg

3. Machine details and products:
Machine Details:
4. Package & Shipping
All of our machines are packed in seaworthy package: wooden case or wooden pallet or carton box for shipment.
5. Workshop
6. CE certificates:

---
