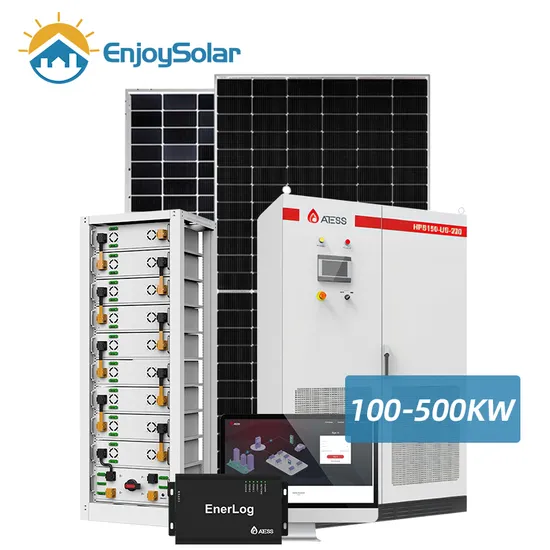

100kw Hybrid Solar Energy Storage System with Lithium Ion Battery LiFePO4 Battery Support

Product Description

How It Works?
Solutions Design

Model	30KW	50KW	100KW
Mono Half Cell Solar Panel 570W	42PCS	75PCS	150PCS
Hybrid Inverter	50KVA 1PC	50KVA 1PC	100KVA 1PC
LiFePO4 Battery	48.8KWH (Optional)	100.4KWH (Optional)	200.7KWH (Optional)
DC Cable 1*4MM2	600 Meters	800 Meters	1000 Meters
MC4 Connector	10 Pairs	14 Pairs	20 Pairs
Mounting System	Customized Designed Roof/ Ground Mounting Kits
Solar Installation Tool	1 Set	1 Set	1 Set

System Components
Mono Solar Panel
Model: ES570M-PH
Peak Power Watt: 570Wp
Open Circuit Voltage (Voc/V): 50.2V
Short Circuit Current (Isc./A): 14.34A
Voltage at Maximum Power (Vmp./V): 42.51V
Current at Maximum Power (Imp./A): 13.41A
Efficiency: 22.07%
Dimensions: 2278*1134*35mm
Weight: 28.6 kgAll-in-one hybrid solar inverter
Boosts energy independence for both homeowners and commercial users
Smart Monitoring & Remote Firmware Upgrade
Features Built-in Anti-feed-in Function
AFCI (Optional) & Ready for Rapid Shutdown
Supports Time-of-use Optimization Battery Storage Bank
Deep Cycle design with an extended lifespanDelivers outstanding high discharge performanceOffers easy installation and is maintenance-freeCompatible with AGM/GEL/Lithium Ion Battery TypesHigh Voltage Battery
Exceeds 6000 cycles, up to 90% DODDesigned for a wide range of ambient temperaturesDC Cable & Accessories
Cross Section: 4mm2, 6mm2 OptionalRated Voltage: 600VDC /1000VDC (TUV)Rated Current: 55A, 70AAvailable Colors: Black as Standard, Red OptionalLifetime: ≤25 YearsOnline Monitoring System
Open Station supports seamless one-click
Installation and solves registration problems efficiently
Facilitates one-click dispatch and navigation
Ensures safe operation with traceable logs and more
Supports full life-cycle data storage to guarantee
data security and reliabilityPV MOUNTING SYSTEM
MOUNTING RAIL & RAIL SPLICE KIT: AI6005 & SUS304 BOLT
MID&END CLAMPS: 30,35,40MM
Optional: Roof Mounting/Ground Mounting/Carport etc. Customized design based on customer's installation area. Packaging & Shipping
