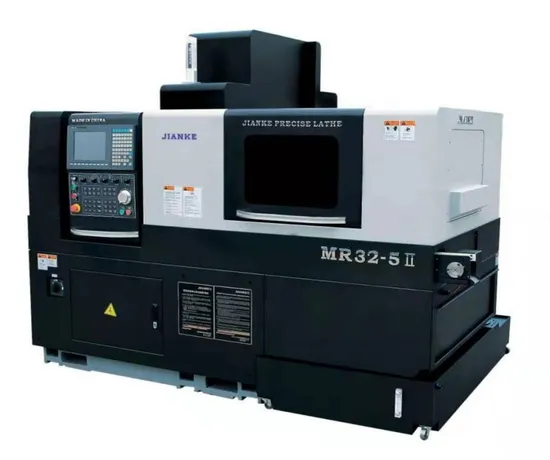

Jianke MR325 32mm High Precision 5 Axis Swiss Type CNC Lathe Sliding Headstock Lathe Longitudinal CNC Lathe

Product Description

Product Description

Jianke MR325 32mm High Precision 5 axis Swiss type cnc lathe Sliding Headstock Lathe Longitudinal CNC Lathe
Swiss type CNC lathe double spindle 5 axis model MR32-5II	Main spindle & Sub spindle
·excellent performance·ability powerful·Operate flexbile	·Main and sub spindle C axis stantard configration,complete functions ·Excellent performance multi types of tools coordinate reasonably,multi tool frame rasonably option ·rotary guide sleeve,no guide bush freely option, save material high benefit.

Detailed Photos

Product Parameters

Double spindle Swiss CNC lathe MR32-5II
System	Taiwan SYNTEC	Syntec210TB-A
	Control channel	Double channel
	Minimum setting unit	0.001mm
Machining	Max processing diameter	32 mm
	Max processing length at one time	With guide bush	260mm
		Without guide bush	1:2.5D(Dia:Lenth)
	Main spindle max drilling Dia	Main spindle axial	Φ13mm
			Φ10mm
			Φ7mm
	Main spindle max tapping Dia	Main spindle axial	M12
			M8
			M6
	Power head max drilling Dia	Radial	Φ10mm
	Power head max tapping Dia	Radial	M8
	Sub spindle max drilling Dia	Sub spindle axial	Φ10mm
	Sub spindle max tapping Dia	Sub spindle axial	M8
Tool	Tool seat arrangement	Upside tool seat
	Main spindle turning tool	6 pieces	6 pieces 16X16mm
	Main spindle side roatry power head	5 pieces	5 pieces ER16
	Main spindle end face fixed tool seat	4 pieces	3 pieces ER11/ER16+1 piece ER20
	Sub spindle end face fixed tool seat	4 pieces	ER11/ER16
Main Spindle	Main/sub spindle type	Built-in oil-cooled electric spindle
	Main/sub spindle speed	8000rpm/min
	Main/sub spindle index	0.001°
	Main/sub spindle hole Dia	34mm
	Main/sub spindle center height	1060mm
Motor power	Main Spindle power (rated/maximum)	3.5kw/6.0kw
	Sub Spindle power (rated/maximum)	3.5kw/6.0kw
	Side rotary head motor power	1.7kw
	Side rotary head speed	5000rpm/min
	No. of moving axis	5 axis	X1,Y1,Z1,X2,Z2
	Rapid feeding speed	24m/min
	Moving axis motor power	0.75kw
Other	Parts receive device	Short bar	Parts conveyor collect parts
		Long bar	Sub spindle backside collect parts
	Power capacity	20kw
	Air pressure	Above 0.4MPa
	Cutting oil tank capacity	286L
	Machine size(L*W*H)	2.47m×1.6m×2.0m
	Lathe Weight	3880KG

Certifications

Packaging & Shipping

Company Profile
Founded in 1999, Jianke Machinery Co., Ltd. is one of the earliest domestic enterprises that involve in the independent research and development of Swiss type precision CNC lathe. The company covers an area of 30,000 square meters. At present, Nanjing Jianke Machinery Co., Ltd. has gradually developed into a machinery manufacturing enterprise integrating R&D, design, manufacturing, sales, installation, service, and imp&exp.
