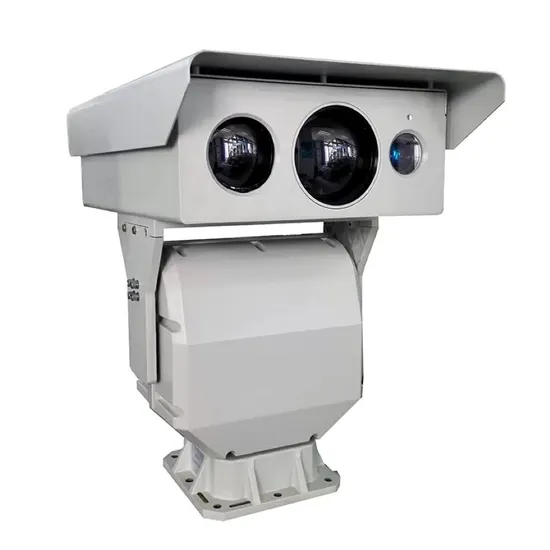

Customizable Ultra Long Range Multi-Sensor High Precision Rangefinder Eoir PTZ Thermal Imaging Camera

Product Description

Product Feature
*Three spectral imaging design, with advantage of visible light imaging clearly, thermal imaging camera detecting far and laser night vision range large
*Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance
*Infrared detector with high temp sensitivity, with min temp resolution of 50mK
*Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black
*Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring
*MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition
*Supporting fog penetration, backlight compensation, multistage wide dynamic
*Optional auto focusing function, realizing multiple focusing mode and triggering mode
*Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency
*3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability
*External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment
*Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain

Operating distance	Visible light	Night vision	3000m
		Day vision	5000m
	Thermal imaging	object	human(1.8m×0.5m)	Vehicle(2.3 m×2.3 m)
		Detection distance	4320m	11880m
		Recognition distance	1080m	2970m
		Identification distance	540m	1440m
High definition lens	Focal lens	12.5~750mm
	FOV	0.5°~28.7°
	Double lens	supporting(optional)
	Auto focusing	supporting(optional)
	Fog penetration	supporting(optional)
Camera	Sensor type	1/1.8"Progressive Scan CMOS
	Coding mode	H.264/MJPEG/MPEG4
	Video resolution	1080P,CIF,supporting three stream
	Video bit rate	32Kbps~16Mbps
	Video frame rate	1~25f/s(50Hz),1~30f/s(60Hz)
Illuminator	Illuminating lens	60* zooming laser telephoto lens
	Power	20W
	Wave length	810nm
	Illuminating angle	0.3°~18°continuous change
	Light homogenization	MCIC multi-tube core fusion mixed mode light homogenization technology
Infrared lens	Focal length	36~180mm
	FOV	2.5°×2.0°~12.7°×10.2°
	F value	F1.0~F1.2
	Lens control	electric zooming, electric focusing(auto focusing optional)
Detector	Detector type	uncooled microbolometer focal plane array(VOx)
	Effective pixels	324×256
	Spectral range	8~14μm
	Temp sensitivity	≤50mK@F1.0,300K
	Frame rate	25Hz
	Image processing	DDE, pseudo color
Pan-tilt	Carrying capacity	50kg(top load)
	Angle	Horizontal 360°continuous rotation,pitching: -60°~+20°
	speed	Horizontal 0.01°~12°/s,pitching 0.01°~8°/s
	Preset bits	255
	Cruising	8 paths,10 bits each path
	Anti-lightning	2000V
interface	Power supply interface	AC24V
	Network interface	1×10Base-T/100Base-TX,RJ45
	Other interfaces	RS422 communication,BNC video output
Environment indicators	Working temp	-25ºC~+55ºC
	Storage temp	-40ºC~+65ºC
	Protection grade	IP66
Power supply	Whole machine power supply	AC24V±10%,appendant AC220V~AC24V/8A water proof power supply
	Whole machine power consumption	≤170W
Physical features	Whole machine weight	45kg
	Installation method	Outdoor pedestal mounting

---
