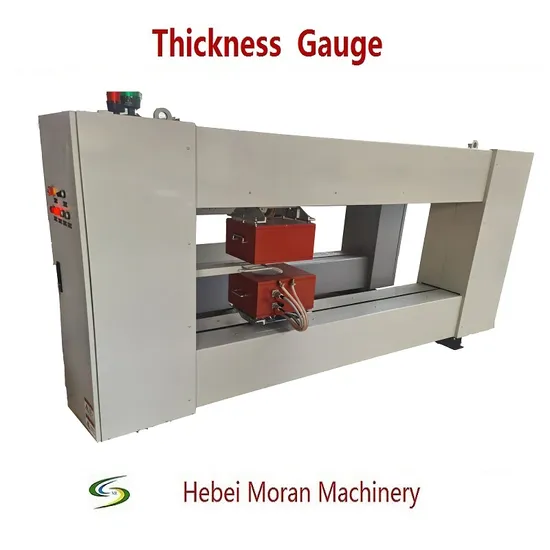

Coating Thickness Gauge
Coating thickness gauge, which is composed of intelligent "0" scan frame, X-ray sensor, operation station, control software, LCD display and other parts. The system realizes automatic online detection of the weight of the upper and lower coatings of the strip steel. The detection data can be transmitted to the upper computer through protocols, point-to-point and other methods, and can participate in the control of the upper computer, so that the production operators can timely and accurately Understand the quality of current production products; and can print production records and reports at any time.
1. Technical Performance
* Main Specifications 1. Coating tested: pure zinc, zinc aluminum magnesium, aluminum zinc silicon (normal spangle, small spangle, large spangle, no spangle) 2. Coating weight detection range: 5g/spm-300 g/spm (each side) 3. The number of sensors: 2 (one for each) 4. Radioactive source type: X-ray source, 30 kV 5. Detection type: ionization chamber
6. Sampling time: 1ms (time interval for collecting data information
7. Repeatability/Measurement accuracy:

Weight	Error
20g/spm	±0.1g/spm
50g/spm	±0.13g/spm
100g/spm	±0.2g/spm
150g/spm	±0.46g/spm
200g/spm	±1.0g/spm
250g/spm	±2.0g/spm
300g/spm	±3.0g/spm

8. Stability: ± 0.13%/8h(100g/ spm )
9. Digital sensitivity: 0.1 g/ spm
10. Standardized frequency: 0-24h
11. Standardization time: about 10s
12. The time required for the initial temperature rise to reach thermal equilibrium under cold start: about 60min
* Stability ≥99.9%
Within one year, the stability ≥99.9% usability test will start after the warm-up commissioning is successful, and the line will run under stable production conditions.
The test will be completed by the buyer's well-trained technicians under the supervision of Jingruida.
The acceptance test should last for ten days (240 hours) 100%
2. Detailed configuration list of coating thickness gauge

No.	Part Name	Description	Qty	Unit	Factory
1	Server	lntel(R)Core(TM) I5-10500 CPU 3.10GHZ 8.00GB Memory (including thickness gauge software)	1	PCS	Dell
2	LCD display	23.6-inch display, showing the software picture of the thickness gauge	1	PCS	Dell
3	Remote display	43-inch LCD display shows the actual weight and total weight of the upper and lower sensors	1	PCS
4	SMPS	OUT DC 24V	5	PCS
5	Filter	AC250V10A-C20K032B 115/250V50/60Hz 10A, (Input voltage filtering)	1	PCS
6	PLC controller	S7-200 SMART	1	PCS	SIEMENS

7	Analog input module	EM AE04	1	piece	SIEMENS
8	Communication module	5650 network communication module	1	piece	MOSA
9	Drive motor	RF27DRS71M48EI 0.55KW	1	piece	SEW
10	Frequency converter	6SL32105BB175UV1	1	piece	SIEMENS
11	Encoder	RVI58N-011K1R61N-01024	1	piece	Pepperl+Fuchs
12	Ionization chamber	Contains ionization chamber and sealed housing imported from the United States	2	piece	America
13	Acquisition magnifying board	Bias high voltage module and signal amplifier circuit	2	piece	America
14	X-ray tube	X-ray tube imported from the United States, sealed shell with water cooling function	2	piece	America
15	High voltage power supply	High-voltage control board imported from the United States, supporting communication interface device	2	piece	Spellam
16	Water cooler	Cooling the ray source, sensor and shell, adopting air-cooling method	1	piece	Angus
17	Coated frame	Including scanning track, water pipeline, warning light, two sets of measuring strip steel coating thickness sensors, to achieve simultaneous measurement of coating weight	1	set
