Product Description

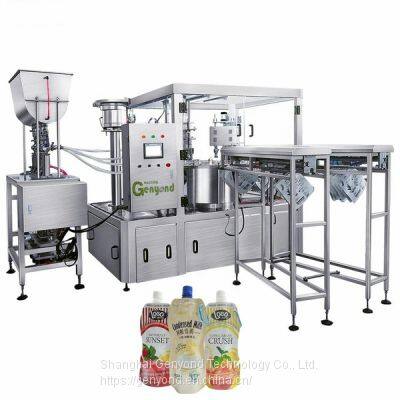

Spout pouch filling capping machine
1)Automatic spout pouch filling and capping machine is suitable for liquid or semi-liquid,such as packing jelly, soy milk, yoghourt, mineral water, juice, ice cream, edible oil, seasoning, scour, laundry detergent etc;
2)This is a full automatic production line with such processes as automatic pouch-loading, vacuuming, fixed-position filling, nitrogen flushing, clean spout, cap feeding and inserting, capping (applying magnetic adjusting torque for rather stability), discharging;
3)This machine can be connected CIP cleaning syetem, PLC control and touch screen system, air-purifying system, safeguard switch, glass cover. All of these functions can be added or removed according to the clients' requirements.
Description
- It is a full Automatic production processes, including pouch loading → dosing filling
→ spout cleaning →cap-vibrating→ cap-inserting → control cap-screwing
→ pouch discharge .
- The machine is integrated with pneumatic, mechanical drive and PLC control.
- Accurate dosing filling, volume tolerance is +-1.5%.
- The filling head will stop filling if no pouches available.
- The capping torque is adjustable.
- The touch screen can be set with two language version.
Specification:
Model
|
Volume
| Production
Capacity
(bags/h)
| Dimension of
Machine(mm)
|
Filling Head
|
Filled Contect
|
GY-2
| 100-300ML
| 1800-2400
| 2180*2240*3230
| 2
| Liquid product
(Juice, Puree,
Water etc.)
|
GY-3
| 2800-3600
| 2400*2500*3800
| 3
|
GY-4
| 4000-4800
| 2400*2500*3800
| 4
|
GY-5
| 5000-6000
| 2330*2520*3760
| 5
|
GY-6
| 6000-7200
| 2330*2520*3760
| 6
|
GY-8
| 7000-8000
| 2330*3610*3300
| 8
|
GY-10
| 9000-12000
| 2330*3610*3300
| 10
|
Model
|
Volume
| Production
Capacity
(bags/h)
| Dimension of
Machine(mm)
|
Filling Head
|
Filled Contect
|
GY-1D
|
500-2000ML
| 500-1200
| 2155*2476*2240
| 1
|
Liquid product
(Detergent etc.)
|
GY-2D
| 1000-2000
| 2155*2476*2240
| 2
|
GY-3D
| 1500-2500
| 2400*2500*3800
| 3
|
GY-4D
| 2000-3000
| 2330*2520*3760
| 4
|
