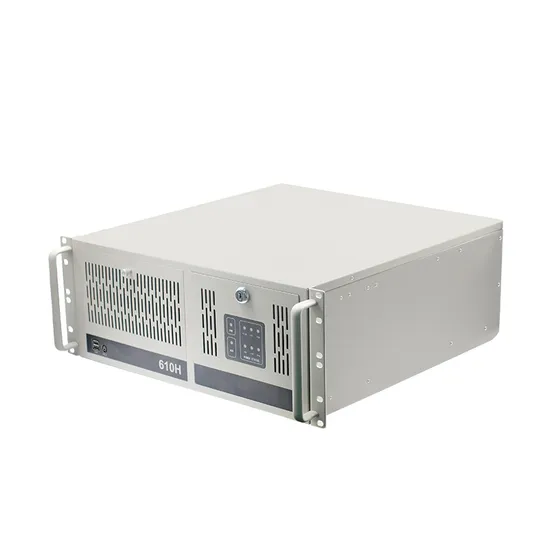

| model | STX-04 |
| Overall size | 482*450*178mm |
| Material | Maanshan Iron & Steel high-grade galvanized sheet |
| Matching motherboard size | 305*244mm |
| Hard Disk Bit | 1 3.5-inch + 2 2.5-inch hard disk slots or 3 2.5-inch hard disk slots |
| Optical drive bit | Support 3 5.25 optical drives |
| Heat dissipation | 1 12cm fan + 1 8cm fan (reserve 2 6cm fan slots in the rear window) |
| power supply | ATX power supply |
| Expansion slot | 1*PCIE_X16 2*PCIE_X4 1*PCIE_X1; 3*PCI |
| Panel interface | 1*VGA 1*HDMI 1*DP 1*DVI 6*USB3.0 3*LAN 1*LINE OUT 1*MIC 1*LINE IN 1*LPT 2*Phoenix terminal interface RS485 4*DB9 interface RS232 or RS485 (main board Jumper settings and BIOS settings to choose) |
| colour | White sand spray paint |
| Special Instructions | The panel is equipped with LED indicators, which will be displayed at the same time when power is on |
| Chassis thickness | 1.2mm |
| Product Weight | 9.51kg |
| Gross weight | 11.35kg |
| Standard | |
| package | |
