Cheap CNC Milling Machine Best Price Machining Center Vm855

Product Description

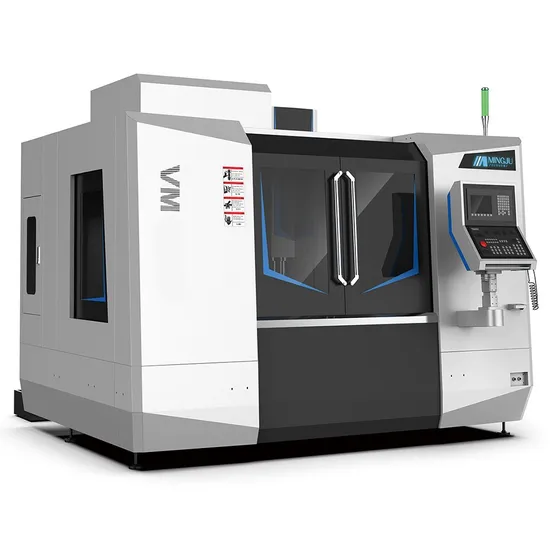

VM-855 Universal Three Linear Guideway Vertical Machining Center
Product Parameters

Model			VM-855
Item	Specification	Unit
Travel	X/Y/Z Axis	mm	800/550/550
	Distance from Spindle Nose to Table	mm	135-685
	Guideway Type	-	Three-linear-guideway
Worktable	Worktable Size (L*W)	mm	1000x550
	Max. Worktable Load	kg	500
	T-Slot (number x size x distance)	mm/mm/mm	5-18-90
Spindle	Spindle Taper	type	BT40
	Spindle Speed	rpm	8k/10k
	Spindle Motor Power	kw	7.5-11
	Spindle Drive Type	-	belt
Feed	X/Y/Z Axis Rapid Feed	m/min	48/48/36
	Cutting Feed Speed	mm/min	1-10000
Tool Magazine	Magazine Type	-	Arm type
	Tool Holder Type	type	BT-40
	Tool Capacity	tools	24
	Max Tool Diameter (adjacent tools)	mm	Φ80
	Max Tool Diameter (no adjacent tools)	mm	Φ150
	Max Tool Length	mm	300
	Max Tool Weight	kg	8
	Tool Change Time	sec	3.5
Accuracy	Positioning Accuracy	mm	±0.005
	Repeat Positioning Accuracy	mm	±0.003
Power	Power Requirement	kVA	25
	Air Pressure Requirement	kg/cm²	6-8
Dimensions	Length/Width/Height (including water tank)	mm	2720x3450x2650
	Weight (including water tank)	ton	5.5

Other Recommend Model
Product Description
Introduction
This series of products is equipped with mainstream components from the industry, featuring FANUC-β series high-speed motors. It balances high speed, high precision machining, and cost-effectiveness, making it suitable for the regular machining needs of various products.
Structural DesignThe structural design of the VM series is optimised by the most advanced Finite Element Analysis (FEA) method in the market, and a large number of reinforcing bars are used to optimise the internal stress structure of the whole machine, ensuring the steeliness and thermal stability of the whole machine.

Structure Features
The base is wide and thick, and the column is box-type structure with good rigidity.
The spindle box is reinforced with ribs inside, and the contact length between the column and spindle box is reasonable to provide stable support for the spindle.

The three-axis guideway adopts the original precise linear guideway with high rigidity, low noise and low friction coefficient, which is suitable for high-speed and high-precision machining.

3-axis motor and precision high-speed ball screw direct drive and assembly, enhance rigidity and improve precision. Support high-speed displacement, saving up non-processing time.

Spindle can be selected according to the processing needs of the belt type or direct connection type high-speed spindle, no matter in the high-speed or low-speed milling and drilling, can maintain stable accuracy, cutting efficiency is greatly improved.
Bed, Column And Saddle
The bed, column, and saddle are composed of Meehanite HT300 grade cast iron, which includes very high dampening characteristics. The one piece bed casting and column are stress relieved to ensure machine geometry is maintained throughout the life. Wide spacing of the linear guideways ensures optimal support for the table and saddle in full travel of each axis. Heavily ribbed castings provide superior dampening for high speed machining and aggressive milling.
Application
Widely used in aerospace, automotive parts, electrical instruments, motorbikes, tools, hardware, electrical machinery and other industries, moulds, parts processing. It can efficiently process small and medium batches of workpieces and manufacture complex and high-precision parts. Company Profile

---
