LCD Display Three Phase Multifunctional Power Meter Voltmeter Digital Ampere Meter

Product Description

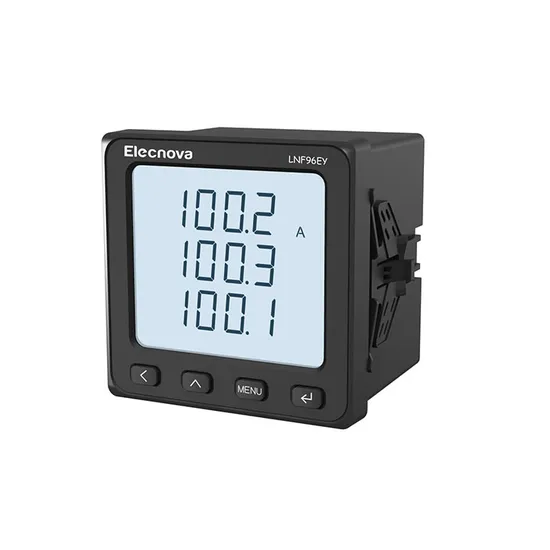

Product Name: LCD Display Three Phase Multifunctional Power Meter VoltMeter Digital Ampere Meter
This series of multifunctional power meters has the functions of full power parameter measurement, two-way power metering, four-quadrant reactive power metering and harmonic analysis, and can be connected to power monitoring systems and energy management systems. It is characterized by high precision, high protection level, and expandable functions.

Accuracy		0.5S
Data Update Rate		1s
Signal Input	Rated Current	AC 1A,5A
	Rated Voltage	AC 100V,380V
	Overload	Continuous:2In,instantaneous:10In/5s
		Continuous:1.2Un,instantaneous:2Un/1min
	Energy Consumption	≤0.1VA
	Fequency	45~65HZ
Communication	RS485 Interface	Modbus-RTU protocol, baud rate up to 9600bps
Energy Pulse		Optocoupler isolation ,pulse width 80ms±20%
Digital Input		Optocoupler isolation ,passive dry contact
Relay Output		Contact capacity AC250V 5A or DC 30V 5A
Auxiliary Power Supply	Working Range	AC/DC 80~270V
	Energy Consumption	≤5VA
Environment Condition	Working Temperature	-10~55ºC
	Storage Temperature	-25~70ºC
	Relative Humidity	≤93%RH
	Altitude	≤2000m
Safety	Insulation	SignaL,power supply,output terminal to case resistance ≥100MΩ
	Withstand Voltage	Power supply,input and output ≥2kv
Protection Level		IP54
