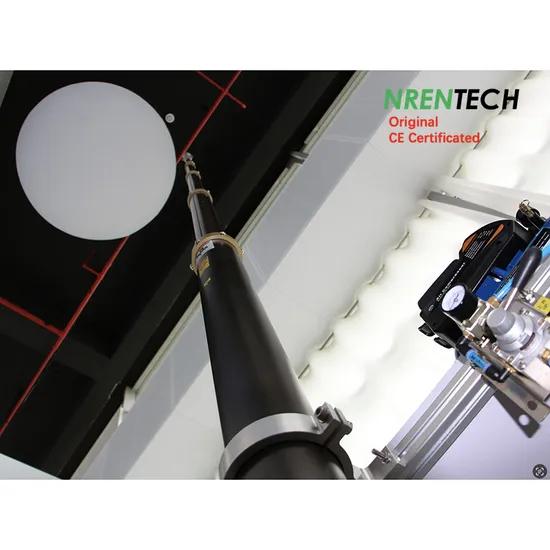

9m Non-Lockable Pneumatic Telescoping Antenna Mast

Product Description

9m Pneumatic Telescopic Mast-30kg payloads NR-2.2-9-30N-6S-51-140 9m Non-lockable Pneumatic Telescopic Mast-30kg payloads Item #: NR-2.2-9-30N-6S-51-140 1> Extended Height: 9m 2> Retracted Height: 2.2m 3> Payloads: 30kg maximum @ 0.15Mpa/22 PSI working air pressure 4> Type: Non-lockable mast (automatic extension/ retraction) 5> Number of sections: 6 6> Section dia. * thickness: 51~140mm 7> Materials: aluminum alloy 6063T5 8> Mast weight: 50kg approx. 9> Working air preesure: 0.15Mpa/22PIS as maximum recommend 10> Working temperature: -25~55 Celcius Degrees 11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control panel Charging accessories: Ground mounting tripods, Guying wires kits 2x4, vehicle side mounting brackets, Electric air compressor DC or AC leading time: 20 days data update on 20230701

9m Non-Lockable Pneumatic Telescopic Mast-30kg Payload
NR-2.2-9-30N-6S-51-140
Extended Height	:	9	m	29.52	ft
Retracted Height	:	2.2	m	7.2	ft
Vertical Payload	:	30	kg	66	lb
Working air pressure	:	0.15	Mpa	22	PSI
Collar Type	:	Non-Locking (Automatic Extention, Automatic Retraction)
Inside Electric Wires	:	\
Number of sections	:	6
Top section diameter	:	51	mm	2.0	in
Basement section diameter	:	140	mm	5.5	in
Mast Weight	:	50	kg	110	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
		\
Optional Accessories	:	Electric air compressor			DC12V, DC24V, AC220V/50hz
		Guying Rope Kits			2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 9m)
		Side Mounting Bracket			Aluminum alloy 6061 Materials
		Ground mounting Tripod			Stainless Materials
		Rotation Basement			Manual Rotation
		Remote control kit			\
data update on 20230701

---
