Full Automatic Single Profile Light Gauge Steel Framing Machine Sfs-C89-1.2mm

Product Description

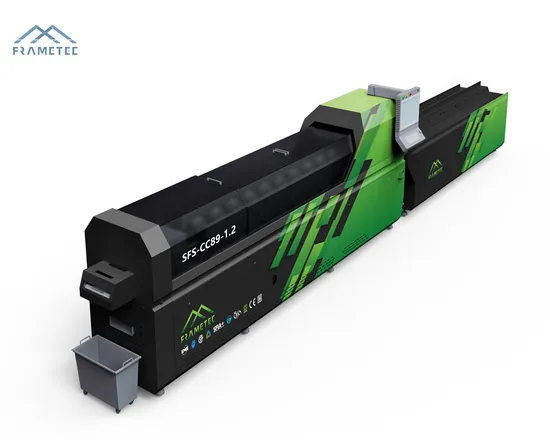

Full Automatic Single Profile Light Gauge Steel Framing Machine SFS-C89-1.2mm
OVERVIEW

The SFS-C89-1.2 is our classical entry level model of Frametec LGSF machine manufacturing system. As our 5th generation classical light steel frame machine, SFS-C89-1.2 is with a perfect performance in high production speed, greater flexibility and high stability, which is suitable for 1-3 stories residential and light commercial projects. Producing profiles from 2.5″ (63mm) to 6″ (150mm) up to 18g (1.20mm) thickness, which can be customized.
With the designing software and control software, the machine can automatic running and saving lots of time in drawing,material reporting, data entry, manufacturing, production record, and correcting all the errors.
Applications: Wall system, floor system and roof system for 1 - 3 level residential, transportable units, modular house, and light commercial construction. Clear span of the roof trusses up to 15m and can be either factory-based or transportable in a mobile factory.
SPECIFICATIONS

Profile Shape	C Shape
Profile Size	63mm/ 75mm/ 89mm/ 92mm/ 100mm/ 140mm & etc.
Material Thickness	0.75-1.2 mm, G300-G550 Zinc-Alum Steel Coil
Operation System	21 inches Touchable Screen
Production Control System	Self-devoloped Controlling Software
Design Software	Vertex BD/ Framebuilder MRD / Strucsoft & etc.
Comprehensive Machine Speed	Floor Joists: 300 m/hr, Walls: 700 m/hr,total around 4 tons per shift
Punching, Cutting Mould	dimple hole, Chamfer cut, Web notch, lip cut, service hole, bolt hole and shearing
Accuracy	± 0.5 mm

WORKING FLOW

De-Coiler→ Leveling Device → Punching Device → Roll Forming System → Cutting Device → Out-Let table





MACHINE DETAILS



PROFILE EFFECT & APPLICATION





DESIGN SOFTWARE & PRODUCTION SYSTEM
(International leading brand for LGS construction design)

OUR FACTORY




WHY CHOOSE FRAMETEC

FrameTec is a specialized manufacture focusing in high quality roll forming equiments for the construction of light steel frame structure & cold formed steel structures.
For many years, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology, and easy operation, and promote users to a higher position in the fierce market competition.
All our machines have a built-in Windows-based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.
FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Panels, Trusses, and Floor Joists in:
Residential and Commercial buildings
Steel-framed systems for modular & prefabricated buildings
Walls framed for low and high-rise buildings
Walling, floors, beams, roofing, kitchen & bathroom pods
Storage, recreational, and transportable dwellings

---
