Product Details
Product Description
Product Description
2-35T01S-551G

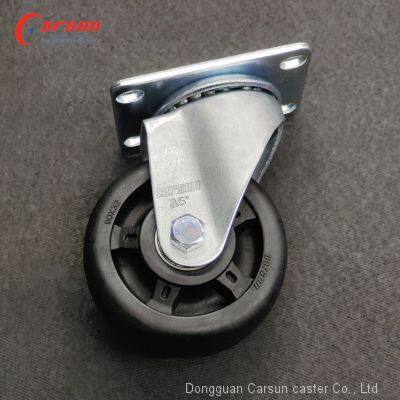

2 series 3.5 inch movable high temperature 250℃ caster (double ball bearing)Industrial Caster wheel
Customizable 3inch, 4inch, 5inch and 6 inch casters
Support Description:Surface galvanized.The thickness of the top plate is 4mm. The top plate and rotary table are steel castings. They are of plane bearing structure, durable, replaceable and easy to repair.
Description of wheel piece: Specially developed formula made of high temperature resistant materials. High temperature resistance 250℃, 280℃, 300℃ can be customized.
which is used to protect the ground and is super wear-resistant, high load-bearing and high durability.
PRODUCT SPECIFICATIONS
Wheel Diameter
| Tread Width
| Capacity Per Caster
| Wheel
| Bearing
| Model number
| Load Height
| Swivel Radius
|
(mm)
| (mm)
| (kg)
| Swivel
| Rigid
| (mm)
| (mm)
|
75
| 32
| 136
| Thermo
| Semi-steel Plain
| 2-3T01S-551A
| 2-3T01R-551A
| 105
| 75
|
Double ball
| 2-3T01S-551G
| 2-3T01R-551G
|
90
| 32
| 136
| Thermo
| Semi-steel Plain
| 2-35T01S-551A
| 2-35T01R-551A
| 119
| 78
|
Double ball
| 2-35T01S-551G
| 2-35T01R-551G
|
100
| 32
| 136
| Thermo
| Semi-steel Plain
| 2-4T01S-551A
| 2-4T01R-551A
| 130
| 84
|
Double ball
| 2-4T01S-551G
| 2-4T01R-551G
|
125
| 32
| 136
| Thermo
| Semi-steel Plain
| 2-5T01S-551A
| 2-5T01R-551A
| 157
| 103
|
Double ball
| 2-5T01S-551G
| 2-5T01R-551G
|
150
| 32
| 146
| Thermo
| Semi-steel Plain
| 2-6T01S-551A
| 2-6T01R-551A
| 185
| 118
|
Double ball
| 2-6T01S-551G
| 2-6T01R-551G
|
The prices of different models are different. Please contact us for quotation, thank you.
Company Profile
FAQ
Q1.Are you a factory or a trader? A: we are a powerful factory established in Dongguan, Guangdong, China, with a factory area of about 8000 square meters. It has 8 injection molding machines, 10 stamping machines, 2 oil presses, 1 double station welding machine, 2 single station welding machines, 2 automatic rivet machines, 6 caster assembly lines and other automatic equipment.
Q2. Can I get free caster wheel samples from Stardrawing ?
A: We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee
forsuchgood products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen,international express type(2~3days) or economic type (4~5days).
Q3. What is your payment terms of caster ?
A: It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for thisregular payment manner.
Q4. What about your lead time ?
A: Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.
Q5. Is it OK to print my logo on casters ?
A: Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton
Q6. How can I trust the quality of your casters ?
A: We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do
aseries of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place
atrial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.
Q7. What express can we choose?
A: FedEx,UPS,DHL,TNT etc.
Q8. What is you MOQ?
A: Small order can be accepted if we have stock. MOQ for different styles is different.
Q9. If you product is environmental protection and anti-rust?
A: Of course,all our products are ECO-friendly.
>>
